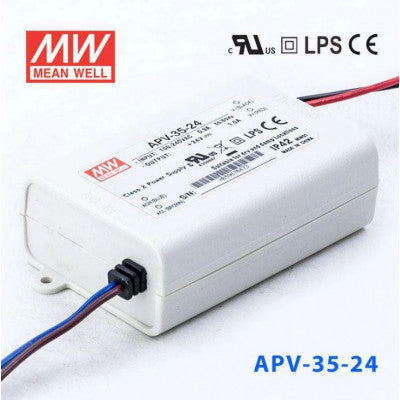

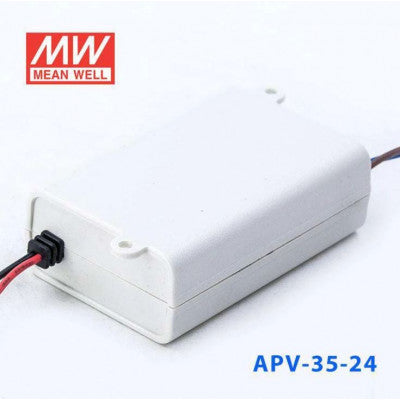

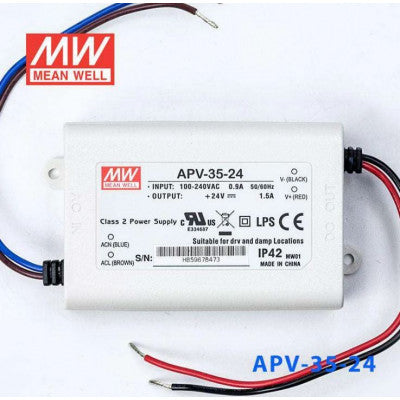

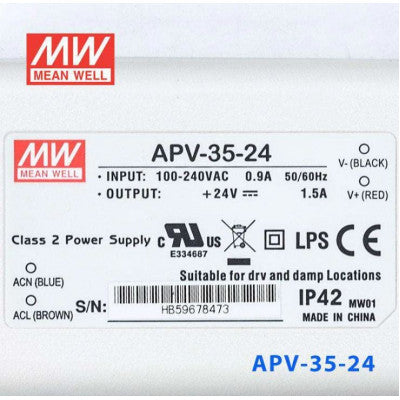

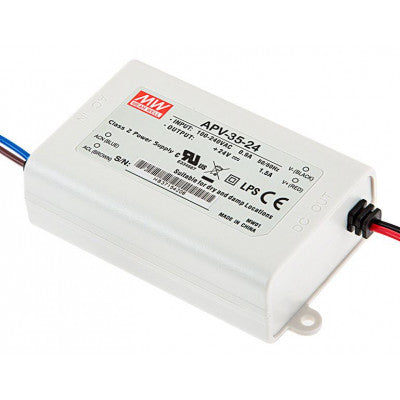

Standard Series APV 35W LED Waterproof Power Supply
Universal AC input, full range, with 2 years warranty
- Output Voltage: 24V
- Type: LED & Waterproof
- Approx. Wattage: 35W
- Features: Standard Series APV (Economical)
- Mechanical Form: Plastic
- Warranty: 2 Years Warranty
- IP Level: IP42
- Input Voltage: 100-240V auto-select
Top Features:
- Fully isolated plastic case
- Short circuit, overload, overvoltage protection
- Constant voltage design (C.V. mode)
- Withstand 300VAC surge input for 5 seconds
The Standard Series APV 35W LED Waterproof Power Supply is suitable for LED lighting and moving sign applications. It has a low cost, high reliability design and comes with a 2-year warranty.
Specifications:
- AC input voltage range: 90~264VAC ; 127~370VDC
- AC inrush current: Cold start, 45A at 230VAC
- Overload Range: >105% rated output current
- Protection Type: Hiccup up mode, auto-recovery
- Over voltage protection: 110%~145% rated output voltage
- Withstand voltage: I/P-O/P: 3kVAC
- Working temperature: -30~+70°C (refer to output derating curve)
- Vibration: 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
- Safety standards: UL8750 approved (except for APC-25-350&APC-35-350/500); Design refer to TUV EN60950-1
- EMC standards: EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
- Connection Input: UL rated, 18AWGx2C (15cm)
- Connection Output: UL rated, 18AWGx2C (15cm)
- Dimension (LxWxH)(mm): 84x 57x 29.5
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or +91-8095406416.
*Images are for illustration only; actual product may vary.
