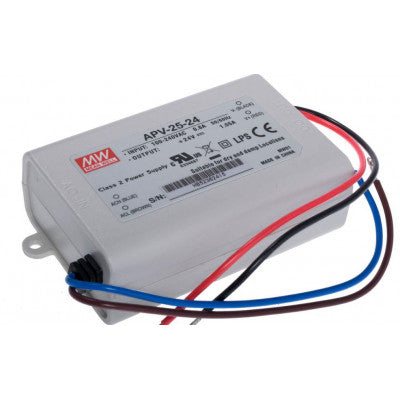

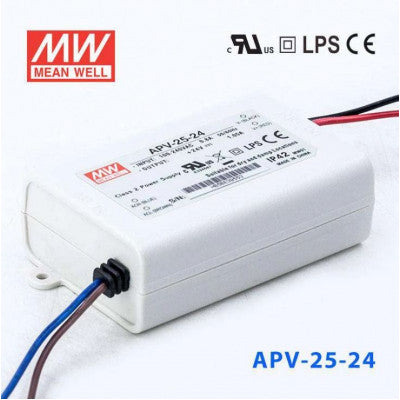

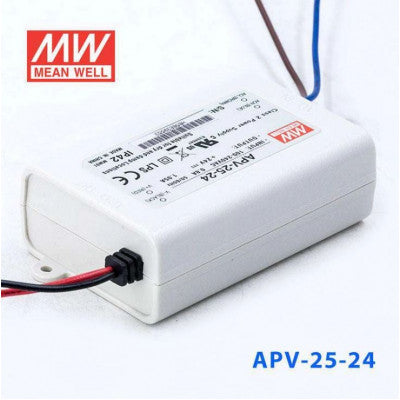

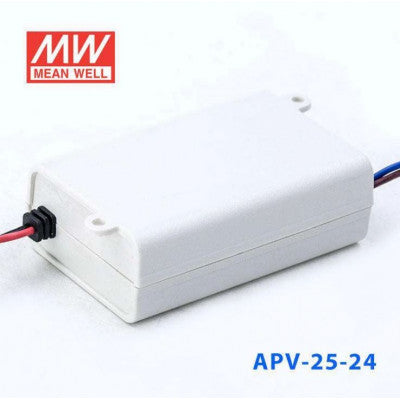

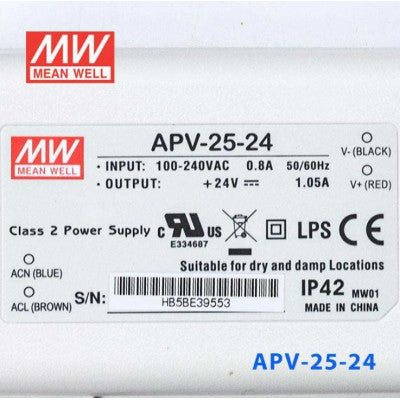

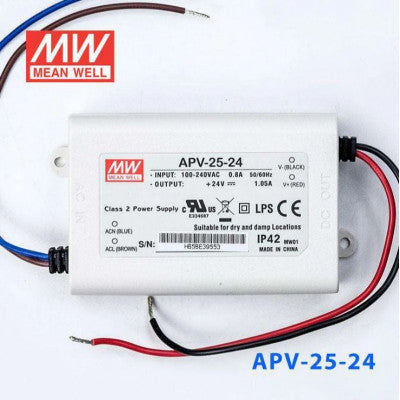

APV-25-24 LED Waterproof Power Supply
Universal AC input, full range, with 2 years warranty
- Output Voltage: 24V
- Type: LED & Waterproof
- Approx. Wattage: 25W
- Features: Standard Series APV (Economical)
- Mechanical Form: Plastic
- Warranty: 2 Years Warranty
- IP Level: IP42
- Input Voltage: 100-240V auto-select
Top Features:
- Fully isolated plastic case
- Short circuit / Overload / Over voltage protections
- Constant voltage design (C.V. mode)
- Withstand 300VAC surge input for 5 seconds
The APV-25-24 LED Waterproof Power Supply is an economical solution suitable for LED lighting and moving sign applications. It features a fully isolated plastic case with protections against short circuit, overload, and overvoltage. With a constant voltage design and IP42 rating, this power supply offers high reliability at a low cost.
Specifications:
- AC input voltage range: 90~264VAC ; 127~370VDC
- AC inrush current: Cold start, 45A at 230VAC
- Overload Range: >105% rated output current
- Protection Type: Hiccup up mode, auto-recovery
- Over voltage protection: 110%~145% rated output voltage
- Withstand voltage: I/P-O/P: 3kVAC
- Working temperature: -30~+70°C (refer to output derating curve)
- Vibration: 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
For detailed technical information, refer to the APV-25 Datasheet.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com or call +91-8095406416.
*Images are for illustration only; actual product may vary.
