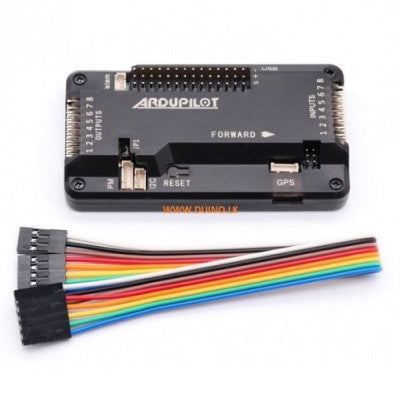

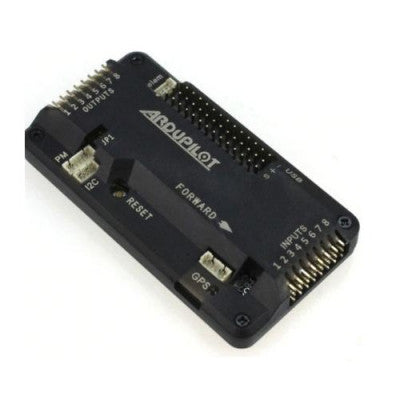

APM 2.8 Multicopter Flight Controller
Upgrade your FPV RC Drone with this advanced flight controller.
- Model: APM 2.8
- Power supply: LP2985-3.3
- Port: MUX (UART0, UART2, mnnI2, and OSD are optional, OSD is the defaulted output)
- Input Voltage (V): 12~16 VDC
- Sensors: 3-Axis Gyrometer, Accelerometer, High-performance Barometer
- Processor: ATMEGA2560 and ATMEGA32U-2
- Micro-SD Card Slot: No
- Dimensions (mm) LxWxH: 70 x 45 x 15
- Weight (gm): 82
Top Features:
- Straight Needle
- Arduino Compatible
- 4 MegaByte Dataflash chip for automatic data logging
- Optional off-board GPS, auBlox LEA-6H module with Compass
The APM 2.8 Multicopter Flight Controller is an upgraded version of 2.5 and 2.6, designed for FPV RC Drones. It shares the same sensors as the APM 2.6 but offers the flexibility of using an external compass via a jumper. This feature makes it perfect for multi-copters and rovers. The APM 2.8 is a complete open-source autopilot system that has been widely used in various autonomous vehicles, including multirotors, cars, and boats.
The ground control software provides a user-friendly interface for configuring and controlling the Ardupilot board. It supports point-and-click waypoint entry, mission command selection, mission log analysis, APM settings configuration, and PC flight simulator integration for UAV simulation.
Key Specifications:
- Spec name: Value
Package Includes:
- 1 x APM 2.8 Multicopter Flight Controller
- 2 x Connecting Wires
* Images are for illustration only; actual product may vary.
