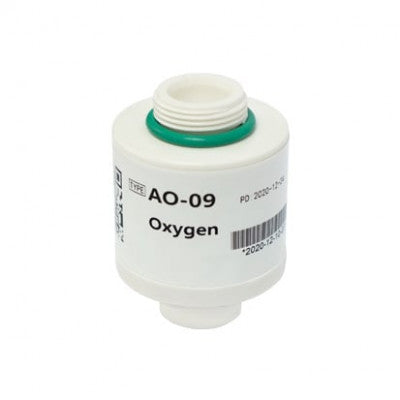

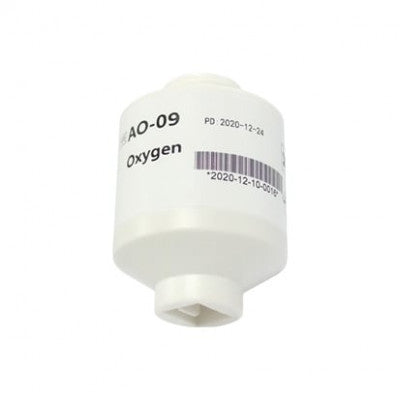

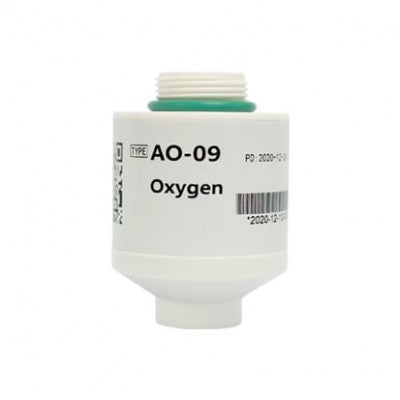

AO-09 Oxygen Sensor
A high-quality replacement sensor with long life and fast response for medical use.
- Applications: AO-09 Medical Oxygen Sensors are intended for use in oxygen analyzers in various medical equipment such as oxygen concentrators, medical ventilators, anesthesia equipment, and incubators.
Features:
- Meets ISO 80601-2-55
- Linear output from 0% to 100%
- No external power supply
- Temperature compensation
The AO-09 oxygen sensor offers excellent signal stability, accuracy, and reliability. It has a fast response time, anti-interference capabilities, and is long-lasting.
- ELECTRICAL:
- Temperature Compensation: 2% O2 equivalent
- External Load Resistor: 10 k
- Connector: 3P2.5
- MECHANICAL:
- Housing Material: White ABS
- Weight: 36 g (nominal)
- Orientation: Any
- Influence of Mechanical Shock: < 1% relative after a fall from 1 m
- ENVIRONMENTAL:
- Operating Temperature Range: 0°C to +50°C
- Operating Pressure Range: 0.5 Bar to 2.0 Bar
- Operating Humidity Range: 0% to 99% RH non-condensing
- Packages Includes: 1 x AO-09 Oxygen sensor
Images are for illustration only; actual product may vary.
