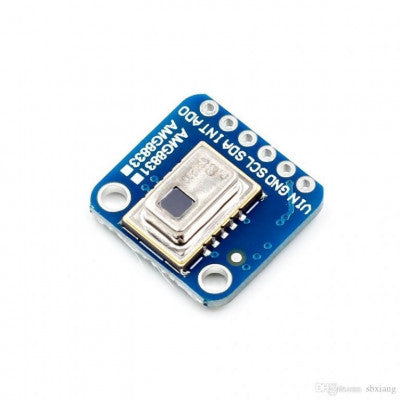

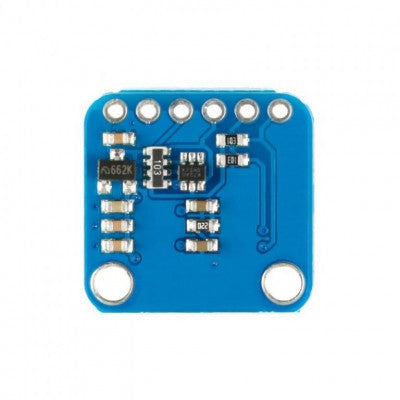

AMG8833 IR 8*8 Thermal Imager Array Temperature Sensor Module
An 8x8 array of IR thermal sensors providing accurate temperature readings.
- Model: AMG8833
- Input Voltage (Volt): 3.3 - 5
- Operating Temperature Range: 0°C to 80°C / 32°F to 176°F
- Storage Temperature Range: -20°C to 80°C / -4°F to 176°F
- Output sink current (mA): 10
- Human detection distance (meter): 7
- Viewing angle (degree): 60
-
Current consumption (mA):
- 4.5 (normal mode)
- 0.2 (sleep mode)
- 0.8 (stand-by mode)
- Number of pixel: 64 (Vertical 8 Horizontal 8 Matrix)
- External interface: I2C (fast mode)
- Frame rate: Typical 10 frames/sec or 1 frame/sec
- Dimensions (mm): 17.5 x 17.5 x 7
- Weight (gm): 2
Top Features:
- 8x8 two-dimensional temperature detection
- Digital output for temperature values
- Compact SMD package for easy mounting
- RoHS compliant
The AMG8833 IR 8*8 Thermal Imager Array Temperature Sensor Module is a compact and high-performance thermal sensor array. It can measure temperatures from 0°C to 80°C with an accuracy of ±2.5°C. With a human detection distance of up to 7 meters, it's ideal for various applications such as creating a human detector or mini thermal camera.
It supports I2C communication and comes with a configurable interrupt pin for threshold detection. The breakout board includes a 3.3V regulator and level shifting for easy integration with 3V or 5V microcontrollers.
Pin Description:
-
Power Pins:
- Vin: Power pin with onboard voltage regulator (3-5VDC)
- 3Vo: 3.3V output from the regulator (up to 100mA)
- GND: Common ground for power and logic
-
Logic Pins:
- SCL: I2C clock pin with level shifting
- SDA: I2C data pin with level shifting
- INT: Interrupt-output pin for motion detection

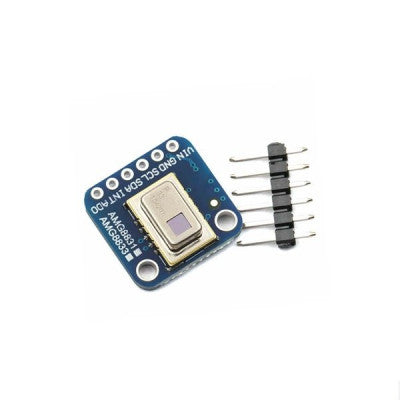

Package Includes:
- 1 x AMG8833 IR 8x8 Thermal Imager Array Temperature Sensor Module
- 1 x Header Set (Without Soldered)
