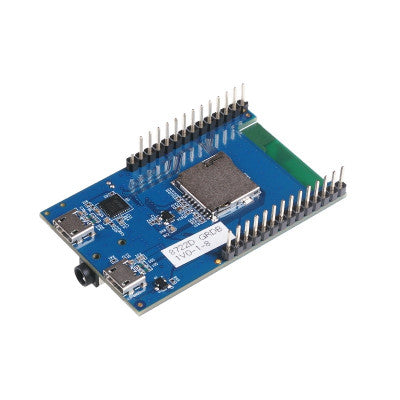

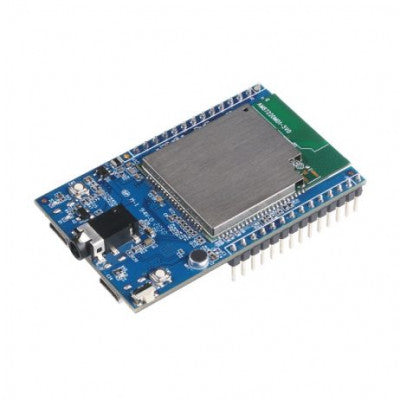

Ameba RTL8722DM mini Board (AMB 23)
High-performance IoT development board with dual Arm CPUs and advanced wireless technologies.
- MCU: 32-bit Arm Cortex-M4, up to 200MHz; 32-bit Arm Cortex-M0, up to 20MHz
- Memory: 512KB SRAM, 4MB PSRAM
- Wi-Fi: 802.11 a/b/g/n 11, 2.4GHz & 5GHz
- Bluetooth: BLE 5
- Security: AES/DES/SHA hardware engine, Arm TrustZone-M, Secure boot
- Audio: Audio DAC and earphone driver, Audio ADC, I2S
- Human-Machine Interaction: Key-matrix, Cap-Touch
- Peripheral Interfaces: 1 PCM interface, 7 ADC, 1 SPI, 9 PWM, Max 23 GPIOs, Switch button
Top Features:
- Support Tensor Flow Lite
- Onboard SD Card Slot
- Ultra-low power consumption for IoT
- High-security architecture with secure boot
Ameba RTL8722DM mini Board (AMB 23) integrates the RTL8722DM SoC, the latest generation SoC of the Ameba IoT solution family. It features dual Arm CPUs, with the Armv8M running at up to 200MHz and the Armv8M running at up to 20MHz. The SoC also includes dual-band Wi-Fi and Bluetooth Low Energy mesh for fast wireless connectivity. With rich I/O peripherals and 4.5MB SRAM, this board is suitable for various IoT applications.
The board supports Windows XP/7/8/10 32-bits and 64-bits, Linux, and Mac operating systems. It is compatible with Arduino IDE for easy application development. The mini development board offers a compact size for seamless integration into projects.
Application:
- Smart Home
- Smart City
- Smart Agriculture
- Industrial IoT
- IoT Hub/Gateway
- Smart Toys
- Wi-Fi Audio/Entertainment device
- Gaming Joystick / Wi-Fi remote controller
Package Includes:
- 1 x Ameba RTL8722DM mini EVB Arduino WiFi Shield
* Images are for illustration only; actual product may vary.
