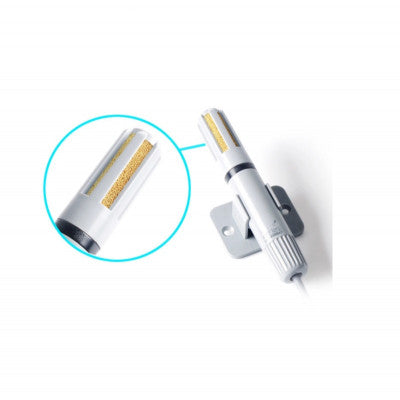

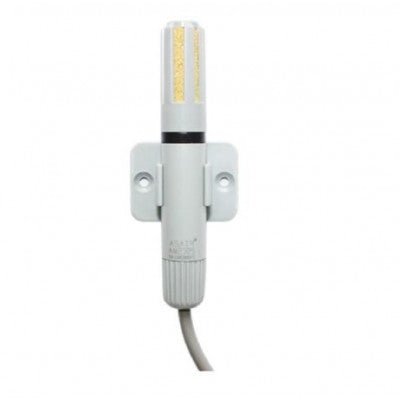

AM2305 Digital Temperature and Humidity Sensor
A digital sensor with high accuracy and ultra-small size.
- Voltage Rating: 5V
- Measuring Range: -40~80
- Interface: Digital
- Temperature Range: -40~80
- Accuracy: 0.3; 3%RH
- Features: Metal screen/capacitance sensor
- Sensor Type: AHT10 integration sensor
- Output: Digital Sensor, Digital 1 Wire
- Humidity Range: 0~99.9%RH
- Resolution: 15X8X4 cm
- Dimension (mm): 150 X 80 X 40
- Shipment Weight: 0.01 kg
- Shipment Dimensions: 37 20 4 cm
Top Features:
- Excellent quality
- Fast response time
- High anti-interference ability
- Ultra-small size and low power consumption
The AM2305 digital temperature and humidity sensor is a combined sensor with calibrated digital signal output. It includes a capacitive sensor for humidity and a DS18B20 temperature measurement device connected to a high-performance 8-bit microcontroller. Each sensor undergoes accurate humidity calibration in a calibration chamber. The calibration coefficients are stored in OTP memory for precise readings.
The sensor features a single-wire serial interface for simplified system integration. With a signal transmission distance of up to 20 meters, it is suitable for various demanding applications in environmental monitoring, ventilators, anesthesia machines, medical apparatus, and more.
Application areas: Environmental monitoring, Ventilator/respirator, Anesthesia machine, Spraying machine, Medical apparatus and instruments, Automatic control, Experimental apparatus.

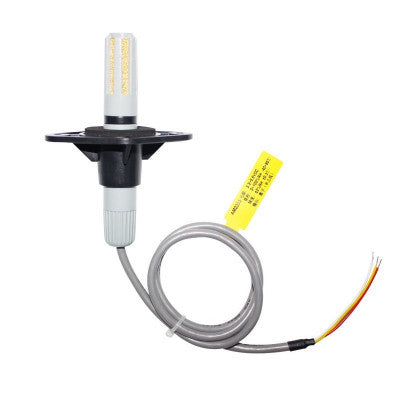

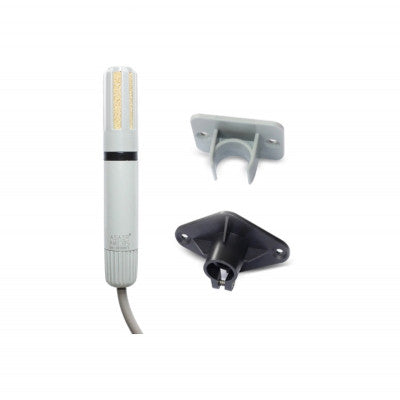

Package Includes: 1 x AM2305 Temperature and Humidity Sensor Shell Duct Sensor Shell
* Images are for illustration only; actual product may vary.
