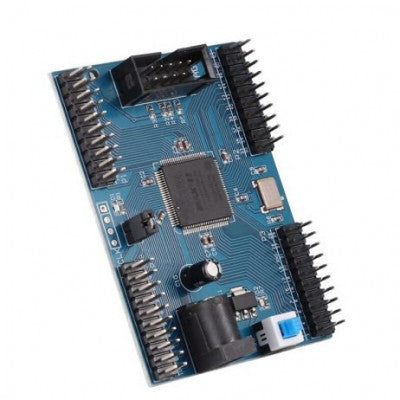

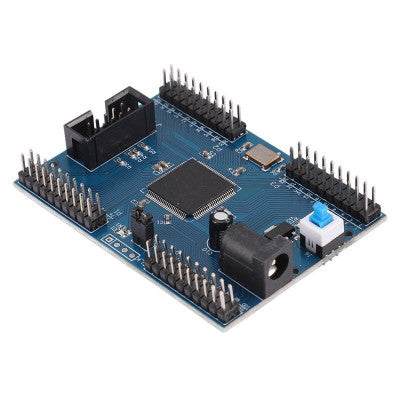

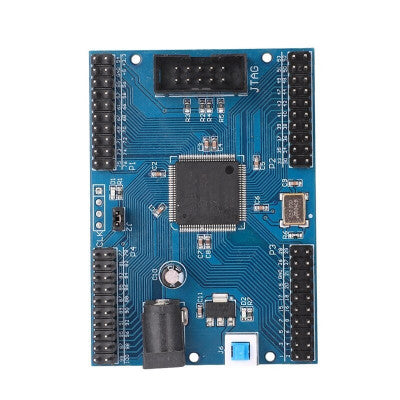

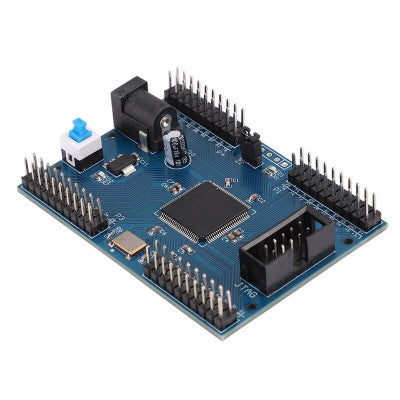

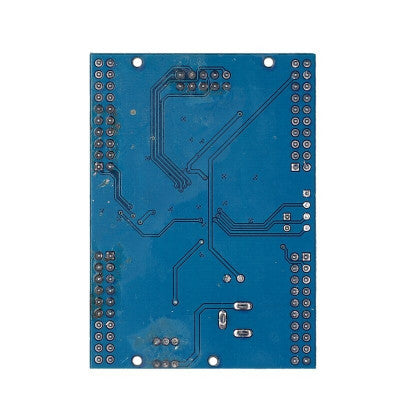

Altera MAX II EPM240 CPLD Development Board
Development board featuring ALTERA MAX II EPM240T100C5N CPLD chip with byte-blaster and usb-blaster download.
- FPGA Chip: EPM240T100C5N
- Input Voltage (V): 5
- Input / Output Pins: 100
- EEPROM chip: 8Kbit EPCS4
- Oscillator Frequency (MHz): 50
- FPGA IO voltage (V): 3.3
- Length (mm): 70
- Width (mm): 50
- Height (mm): 13
- Weight (gm): 27
Features:
- Onboard EPM240T100C5N chip
- 8Kbit EPROM chip (EPCS4)
- 50M active patch crystal
- Single 5V power supply
The Altera MAX II EPM240 CPLD Development Board is designed for convenient product validation and development. The board features a JTAG and power supply interface, making it easy to connect and use with just a 5V power supply. It is ideal for low-cost CPLD/FPGA input and allows users to expand external circuits through various interfaces such as LED lights, digital tubes, LCDs, and serial communication.
With more IO ports and clock pins available for extension, this board offers flexibility for connecting to various memory and peripherals. The compact board dimensions (72 x 52 x 13mm) and lightweight design (21gm) make it portable and suitable for different development projects.
Package Includes:
- 1 x Altera MAX II EPM240 CPLD Development Board
Images are for illustration only; actual product may vary.
