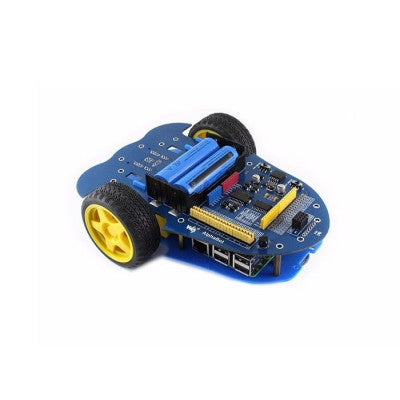

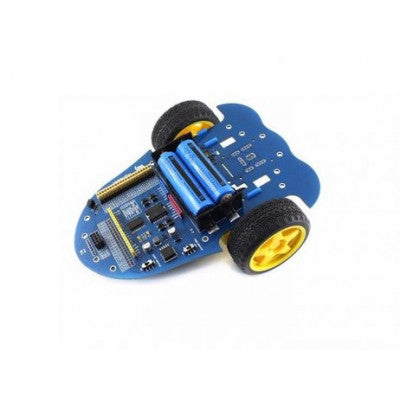

AlphaBot Raspberry Pi Robot Building Kit
A comprehensive kit for building a Raspberry Pi robot with various functionalities.
- Raspberry Pi/Arduino Interfaces: Works with either one separately or both.
- Modular Design: Plug-and-play modules for easy setup.
- LM298P Motor Driver: With diode protection circuit for safety.
- LM2596 Voltage Regulator: Provides stable 5V power.
- TLC1543 AD Acquisition Chip: Allows Pi to use analog sensors.
Specifications:
- Package Includes: AlphaBot mainboard, Tracker Sensor, Photo Interrupter Sensor, Infrared Proximity Sensor, Motor with gearbox, AlphaBot wheel, AlphaBot acrylic chassis, Motor mounting plate, Omni-direction wheel, 20-slots encoder disk, IR remote controller, XH2.54 4cm 4Pin, XH2.54 4cm 3Pin, XH2.54 4cm 7Pin, AlphaBot screws, RPi Camera (B), SG90 servo, 2 DOF pan and tilt kit, 15PIN FFC 25cm, Micro SD Card 16GB, Power adapter US standard 5V/3A micro, USB Micro-B to USB-C Adapter, Micro SD Card Reader.
This kit includes the AlphaBot robotic platform with line tracking, obstacle avoidance, speed measuring, and IR control capabilities. It also comes with a camera equipped with a servo and 2 DOF pan heads. With the modules in the kit, you can quickly start developing various robotic functionalities such as line tracking, obstacle avoidance, IR remote control, and video monitoring via a network.
Utilize the rich Raspberry Pi open-source resources and the modular design of AlphaBot to learn how to extend, refit, and build your Raspberry Pi robot. Please note that the Raspberry Pi itself is not included in this kit.
What's On AlphaBot Board: Raspberry Pi interface, Arduino interface, Motor interface, Ultrasonic module interface, Servo module interface, Obstacle avoidance module interface, Speed measuring interface, Battery holder, Reserved power input, Arduino expansion header, UART interface, SPI interface, Line tracking module interface, TLC1543, LM298P, Anti-reverse diode, Power switch, LM2596, Power indicator, UART switch, IR receiver, Raspberry Pi/Arduino selection.
*Images are for illustration only; actual product may vary.
