TB-02 Intelligent Lighting Module
Bluetooth module compatible with BT 5.0 low-power Tmall Genie Mesh
- Model Name: TB-02
- Size: 18.0x18.0x2.8(±0.2)mm
- Wireless Standard: Bluetooth V5.0
- Frequency Range: 2402 ~ 2480MHz
- Max Sensitivity: -93.2dBm

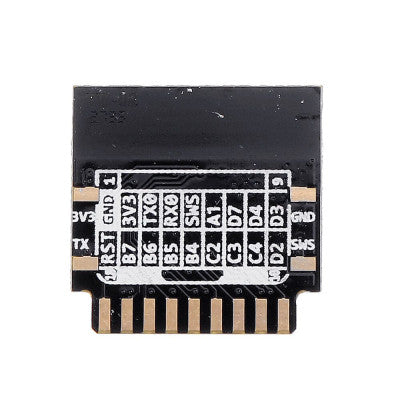

- Interface: GPIO/PWM/SPI/ADC
- Work Temperature: -20°C~ 70 °C
- Store Temperature: -40 °C~ 125°C, < 90%RH
- Voltage Range: Voltage 2.7V ~ 3.6V, Current?50mA
- Power: Deep Sleep Mode?0.8uA Sleep Mode?1.8uA TX?12.62mA
- Transmission distance: 80m ~ 150m
Features:
- Directly controlled by Tmall Elf without a gateway
- 1.6mm pitch pin vertical solder DIP18 package
- 6 PWM outputs
- On-board antenna, no need for antenna design

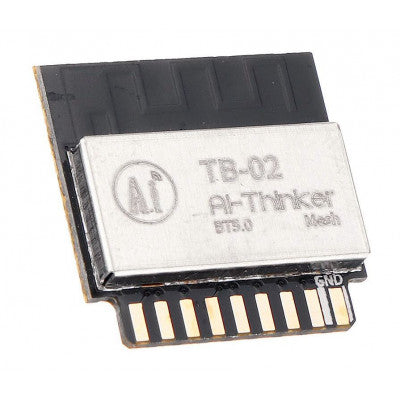

The TB-02 intelligent lighting module is a Bluetooth module based on the TLSR8250F512 chip and compatible with BT 5.0 low-power Tmall Genie Mesh. This module supports Bluetooth module direct control by Tmall Genie and has a Bluetooth mesh networking function. Peer-to-peer network communication, using Bluetooth broadcast for communication, can ensure a timely response in the case of multiple devices. It is mainly used in intelligent light control, meeting the requirements of low power consumption, low latency, and short-range wireless data communication.
With brightness (duty cycle) adjustment range of 5% - 100% and factory default 50% duty cycle for cool and warm colors, this module also features PWM output power at 1KHz. It includes a night light function and a wall switch to switch color temperature function.
Package Includes:
- 1 x Ai Thinker TB-02 Bluetooth module
