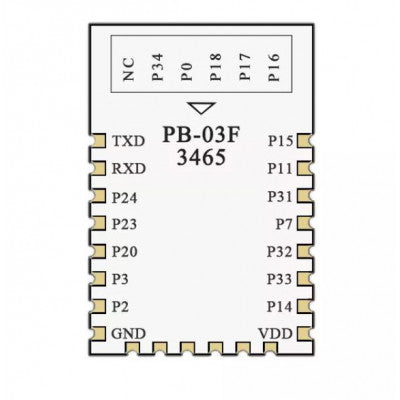

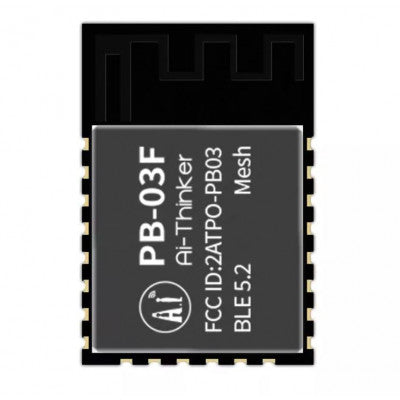

Ai Thinker PB-03F Bluetooth Module
Highly integrated BLE SoC for IoT, mobile devices, wearables, and smart homes.
- Model: PB-03F
- Package: SMD-22
- Size: 24.0x16.0x3.1(±0.2)mm
- Antenna: On-board antenna
- Frequency Range: 2400 ~ 2483.5MHz
- Operating temperature: -40°C~85°C
- Storage environment: -40°C ~ 125°C, < 90%RH
- Power supply range: Voltage 2.7V~3.6V, Current > 200mA
- Support Interface: UART/GPIO/ADC/PWM/I2C/I2S/SPI/PDM/DMA
- IO: 19
- UART Rate: Default 115200 bps
- Bluetooth: BLE 5.2
- Security: AES-128
- Flash: 256KB
Top Features:
- Rich peripheral interfaces: UART, PWM, ADC, I2C, SPI, PDM, DMA
- Hardware encryption accelerator with AES algorithm support
- Low power consumption BLE 5.2 with BLE mesh
- Bluetooth ratesupport: 125Kbps, 500Kbps, 1Mbps, 2Mbps
The core processor chip PHY6252(SSOP24) of this module is a BLE SoC with high integration and low power consumption, specially designed for IoT, mobile devices, wearables, and smart homes.
Application: Smart light control, mesh networking
* Images are for illustration only; actual product may vary.
