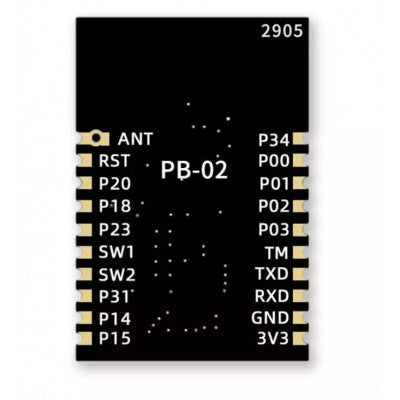

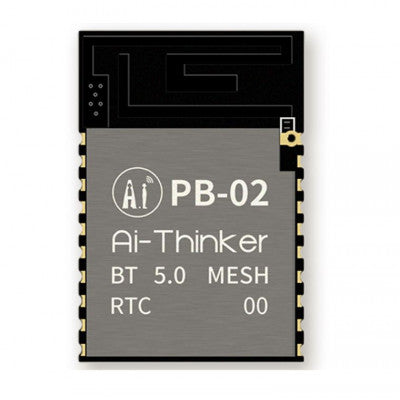

PB-02 Bluetooth-Compatible Module
A Bluetooth-compatible module designed for low-power consumption and mesh networking.
- Model: PB-02
- Dimensions: 12.2x18.6x2.3(±0.2) MM
- Package: SMD-20
- Wireless Standards: Bluetooth 5.0
- Frequency Range: 2400~2483.5 MHz
- Maximum Transmit Power: 10dBm
- Receiving Sensitivity: -93±2 dBm
- Interface: GPIO/PWM/SPI/ADC
- Operating Temperature: -40°C ~ 85°C
- Storage Environment: -40°C ~ 125°C, <90%
- Power Supply Range: Supply voltage 2.7V ~ 3.6V, supply current ?50mA
-
Power Consumption:
- Deep Sleep Mode: 0.7uA (IO wake-up)
- Dormancy Mode: 2uA (RTC wake-up)
- RX Mode: 7mA
- TX (10dBm): 25mA
Features:
- 1.1mm pitch SMD-20 package
- 6 PWM outputs
- PCB on-board antenna
- Brightness (duty cycle) adjustment range 5%-100%
PB-02 is a Bluetooth-compatible module designed based on the PHY6212 chip and conforms to BLE 5.0 low power consumption. It supports SIG Mesh and is equipped with ARM Cortex-M0 32-bit processor with 138KB SRAM. The module has a Bluetooth-compatible mesh networking function, ideal for IoT fields like smart light control and retail payment.
The devices communicate through a peer-to-peer star network and use Bluetooth-compatible broadcast for communication, ensuring a timely response in the case of multiple devices.
Package Includes: 1 x Ai Thinker PB-02 Bluetooth module
* Images are for illustration only; actual product may vary.
