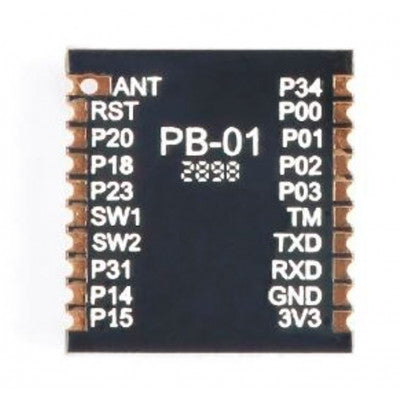

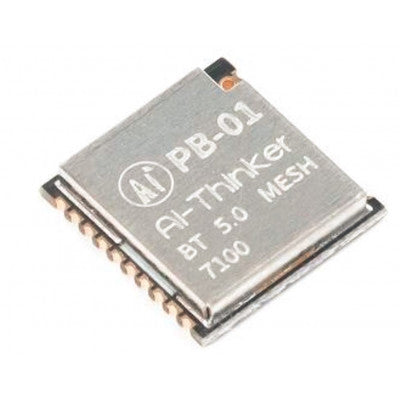

PB-01 Bluetooth Module
BLE 5.0 low-power module supporting SIG Mesh
- Model: PB-01
- Dimensions: 12.2x13.0x2.3(±0.2) MM
- Package: SMD-20
- Wireless Standards: Bluetooth 5.0
- Frequency range: 2400~2483.5 MHz
- Maximum transmit power: 10dBm
- Receiving sensitivity: -93±2 dBm
- Interface: GPIO/PWM/SPI/ADC
- Operating temperature: -40°C ~ 85°C
- Storage environment: -40°C ~ 125°C, <90%
- Power supply range: Supply voltage 2.7V ~ 3.6V, supply current ?50mA
- Power consumption: Deep sleep mode: 0.7uA (IO wake-up), Dormancy mode: 2uA (RTC wake-up), RX mode: 7mA, TX (10dBm): 25mA
Top Features:
- 1.1 mm spacing SMD-20 package
- 6 channels PWM output
- Antenna with half-hole pad mode
- Brightness adjustment range 5%-100%
PB-01 is a BLE 5.0 low-power Bluetooth module based on the PHY6212 chip, featuring an ARM Cortex-M0 32-bit processor and 138KB SRAM. It supports SIG Mesh and offers ultra-low power consumption, high performance, and wireless multi-mode characteristics. The module enables Bluetooth mesh networking for communication between devices through a peer-to-peer network, ensuring timely responses in multi-device scenarios. Ideal for intelligent lamp control, wearable smart devices, retail payment, and IoT fields.
The PB-01 module supports BLE functions for security, applications, and wireless updates. It is designed for low power consumption, low delay, and cost-effective wireless data communication.
Package Includes: 1 x Ai Thinker PB-01 Bluetooth module
* Images are for illustration only; actual product may vary.
