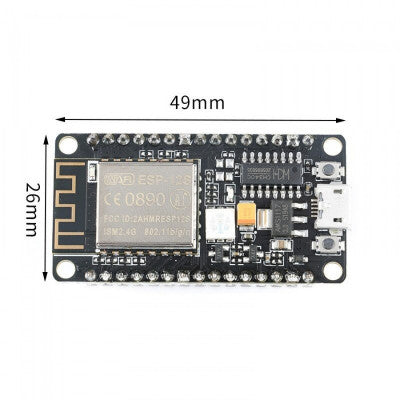

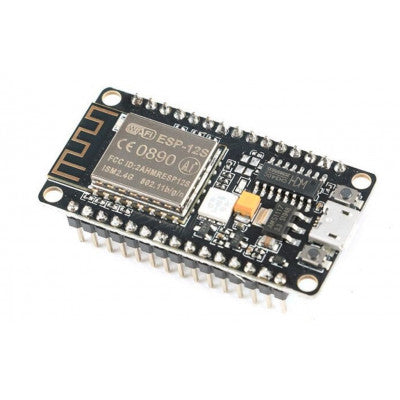

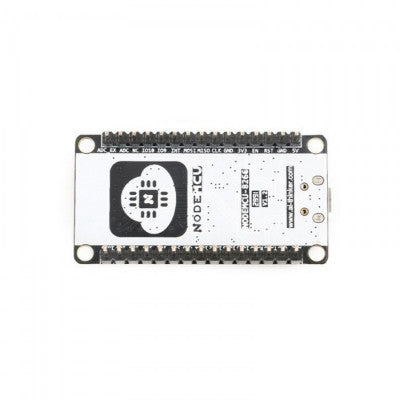

Ai Thinker NodeMCU-ESP8266 (ESP-12S) Development Board
Enhanced version of NodeMCU with ESP-12S module and USB programming
- Supply voltage: Micro USB: 5V DC, 5V pin: 5V DC, 3V3 pin: 3.3V DC
- GPIO voltage: 3.3V
- Chip: ESP8266 ESP-12S
- Flash memory: 4MB Built-in Wi-Fi
- USB to serial converter: CH340C
- Built-in RGB LED: Red: GPIO4, Green: GPIO2, Blue: GPIO5
- CH340 drivers: Windows, Mac OSX, Linux, Android
Top Features:
- Improved ESP-12S module
- Micro USB connection for programming/power
- 4MB Flash memory
- Built-in Wi-Fi for connectivity
This board is a version of the NodeMCU board with an improved ESP-12S module instead of the ESP-12F/E. It features a micro USB connection for easy programming and power supply (micro USB cable not included).
Package Includes: 1 x Ai Thinker NodeMCU-ESP8266 (ESP-12S) Development Board
* Images are for illustration only; actual product may vary.
