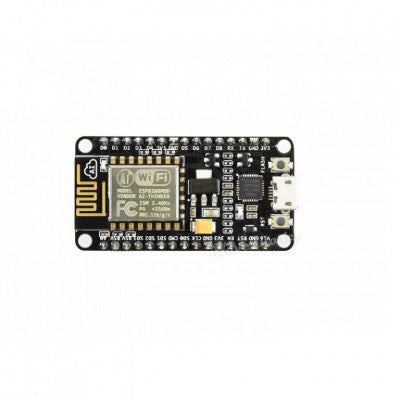

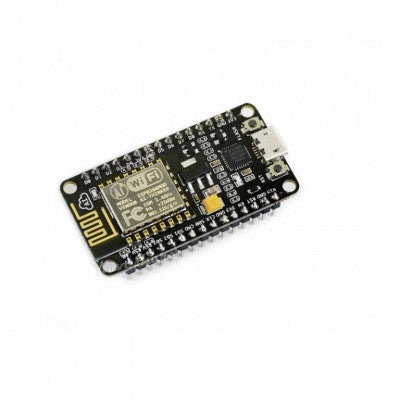

Ai Thinker NodeMCU-ESP8266
An open-source firmware and development kit for IoT products
- WIFI module: ESP-12E
- Processor: ESP8266
- Chip: CP2102 Chip
- Built-in Flash: 32Mbit
- Antenna: Onboard PCB antenna
- Peripheral interface: UART/SPI/I2C/SDIO/GPIO/ADC/PWM
- WiFi protocol: IEEE 802.11 b/g/n
- Frequency range: 2.4G ~ 2.5G (2400M ~ 2483.5M)
- WIFI mode: Station / SoftAP / SoftAP+Station
- Power supply: 5V
- Logic level: 3.3V
Top Features:
- ESP-12E WIFI module
- ESP8266 Processor
- 32Mbit Built-in Flash
- Onboard PCB antenna
The Ai Thinker NodeMCU-ESP8266 is a versatile development board that includes firmware running on the ESP8266 Wi-Fi SoC from Espressif Systems. It is Lua-scriptable and based on the eLua project, utilizing the Espressif Non-OS SDK for ESP8266. The hardware is built around the ESP-12 module, providing various peripheral interfaces such as UART, SPI, I2C, and more.
Package includes: 1 x Ai Thinker NodeMCU-ESP8266 Development Board
- Dimensions (mm): 48.3 x 25.5 x 11.7
- Weight (g): 7
* Images are for illustration only; actual product may vary.
