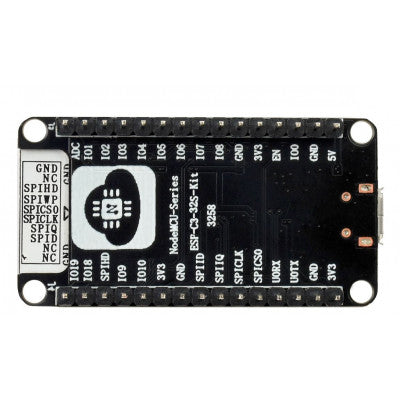

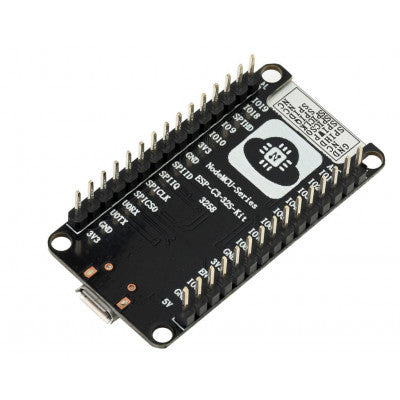

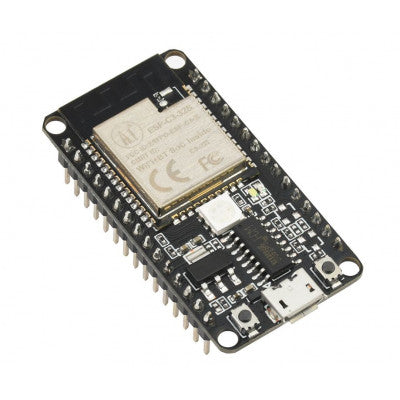

ESP-C3-32S-Kit Development Board
A core development board designed with ESP-C3-32S modules.
- Onboard ESP-C3-32S module: Comes with a PCB antenna
- Onboard CH340: USB to UART converter
- RGB 3-in-1 LED: Convenient for secondary development
- USB port: For power input, firmware programming, or UART debugging
The ESP-C3-32S-Kit development board continues the classic design of the NodeMCU development board, leading to all I/Os on both sides. With pin headers, developers can connect peripherals according to their needs. When using the breadboard for development and debugging, the standard headers on both sides can make the operation easier and more convenient.
Specifications:
- Wi-Fi: Complete Wi-Fi 802.11b/g/n, 1T1R mode data rate up to 150Mbps
- BLE: Support BLE5.0 and rate support: 125Kbps, 500Kbps, 1Mbps, 2Mbps
- Processor: ESP32-C3 chip, 32-bit RISC-V single-core processor
- Interfaces: UART/PWM/GPIO/ADC/I2C/I2S interface, temperature sensor, pulse counter
- Package: SMD-38 package
- Flash: Built-in 2MByte Flash, support external Flash version
Package Includes:
- 1 x Ai Thinker NodeMCU-ESP-C3-32S Development Board
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
