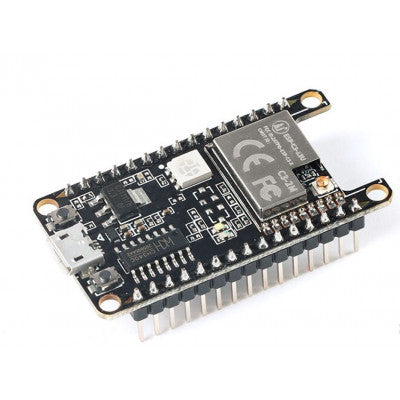

ESP-C3-13U Development Board
A versatile development board with Wi-Fi and BLE capabilities
- Model Name: ESP-C3-13U
- Package: DIP-30
- Size: 20.0x18.0x3.1(+0.2)mm
- Antenna: Compatible with on-board PCB antenna/IPEX
- Frequency Range: 2400-2483.5MHz
- Operating Temperature: -40 °C to 85 °C
- Storage Temperature: -40 °C to 125 °C, <90%RH
- Power Supply Range: Supply voltage 5V, Supply current >500mA
- Support Interface: UART/GPIO/ADC/PWM/I2C/I2S
- UART Rate Support: 110~4608000 bps, default 115200 bps
- Bluetooth: BLE 5.0
- Security: WEP/WPA-PSK/WPA2-PSK
- SPI Flash: Default 4MByte, support 2MByte version
Top Features:
- Wi-Fi 802.11b/g/n, up to 150Mbps data rate
- Supports BLE5.0, with various Bluetooth rates
- 32-bit RISC-V single-core processor
- Integrated Wi-Fi MAC/BB/RF/PA/LNA/BLE
The ESP-C3-13U is a core development board developed by Ai-Thinker based on ESP-C3-13U modules. It features a classic design similar to the NodeMCU development board, allowing easy connection of peripherals with pin headers. The board's standard headers on both sides make it convenient for development and debugging using a breadboard.
The ESP-C3-13U module, with its ESP32-C3 core processor, is designed for various applications such as IoT, mobile devices, wearable electronics, and smart home solutions. It incorporates unique hardware safety mechanisms, including hardware encryption support for AES, SHA, and RSA algorithms, as well as security features like flash encryption and secure boot signature verification.
Additionally, the ESP-C3-13U module supports low-power Bluetooth, Bluetooth 5, Bluetooth mesh, and various Bluetooth data rates. It also offers support for multiple sleep modes, with a deep sleep current of less than 5uA, making it energy-efficient.
The development board includes RGB three-in-one lamp beads for customer convenience and integrates features like UART/PWM/GPIO/ADC/I2C/I2S interfaces, temperature sensor, and pulse counter. It supports various modes like STA, AP, STA+AP, and mix mode, along with Smart Config and Air Kiss for easy network configuration.
With the ESP-C3-13U, you can benefit from UART port location upgrade, remote firmware upgrade (FOTA), and general AT commands for better understanding. It also supports secondary development and comes with an integrated Windows and Linux development environment.
* Images are for illustration only; actual product may vary.
