ESP-C3-12F-Kit Development Board
A core development board designed for the ESP-C3-12F module.
- Model: ESP-C3-12F
- Package: DIP-30
- Size: 25.5x18.0x3.1(±0.2)mm
- Antenna: PCB antenna/IPEX port
- Spectrum Range: 2400~2483.5MHz
- Power Supply: Voltage 5V, current >500mA
- Working Temperature: -40°C ~ 85°C
- Storage Environment: -40°C ~ 125°C, < 90%RH
- Interface: UART/GPIO/ADC/PWM/I2C/I2S

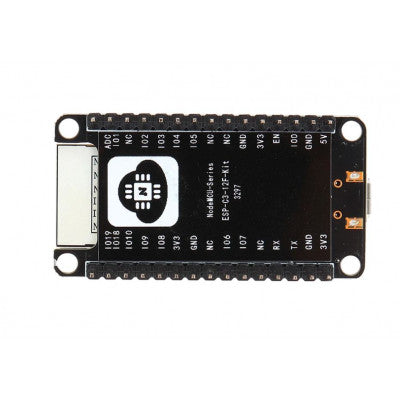

- IO Port: O0, IO1, IO2, IO3, IO4, IO5, IO8, IO9, IO10, IO18, IO19, IO20, IO21
- Serial Port: Support 110 ~ 4608000 bps, default 115200 bps
- Bluetooth: BLE5.0
- Safety: WEP/WPA-PSK/WPA2-PSK
- SPI Flash: Default 4M Byte support 2M Byte version

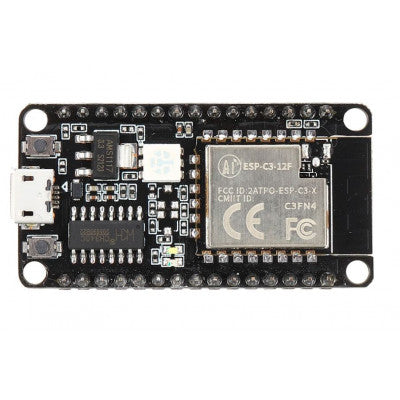

- Onboard RGB Interface: IO5 connects to RGB blue lamp beads; IO3 connects to RGB red lamp beads; IO4 connects to RGB green lamp beads
Features:
- Wi-Fi 802.11b/g/n, 1T1R mode up to 150Mbps
- Supports BLE5.0, no classic Bluetooth
- RISC-V 32-bit single-core processor
- Supports UART/PWM/GPIO/ADC/I2C/I2S interface
The ESP-C3-12F-Kit development board is a versatile board with support for various interfaces and modes. It is designed for easy connection of peripherals and convenient operation during development and debugging. The board features RGB three-in-one lamp beads for customer development and supports multiple sleep modes with low current consumption.
Developers can take advantage of the board's support for different modes like STA/AP/STA+AP and promiscuous mode. It also allows for quick network configuration using Smart Config (APP)/Air Kiss (WeChat) for Android and IOS devices. The board supports local and remote firmware upgrades, along with general AT commands for quick usage.
With the ESP-C3-12F-Kit, developers can enjoy a seamless development experience with integrated development environments for both Windows and Linux. The board's flash configuration supports both built-in and external flash versions for flexibility in storage options.
Package Includes:

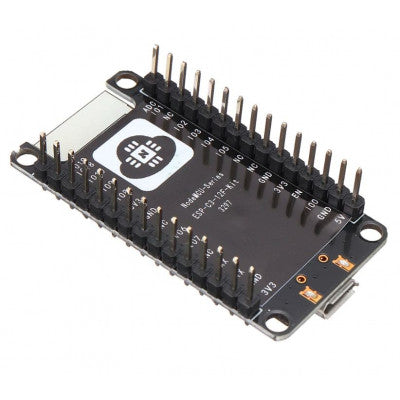

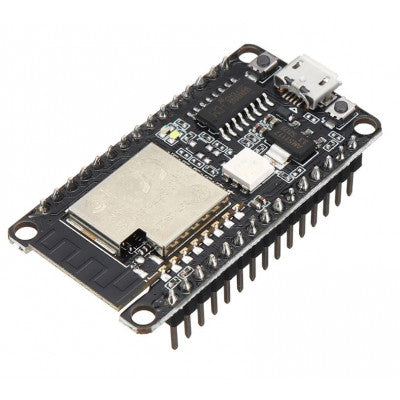

- 1 x Ai Thinker NodeMCU-ESP-C3-12F Development Board
Images are for illustration only; actual product may vary.
