EC-01F-Kit
An ultra-integrated NB-IoT SoC development board with excellent communication performance
- Development board Model: EC-01F
- Adaptive pattern combination: EC-01F
- Storage: 4MB NOR Flash on chip
- Flash: 4MB NOR Flash
- Series Rate: Support 110 ~ 4608000 bps, Default 9600 bps
- IO quantity: 8 (include TX0\RX0 TX1\RX1)
- Antenna form: NB: External SMA antenna
- Spectral Range: Band3, Band5, Band8
- Working Temperature: -40°C ~ 85°C
- Storage Environment: -40°C ~ 125°C, < 90%RH
- Supply district: 5V Micro USB or pin 3.3V power supply
- Support interface: UART/I2C/PWM/ADC/GPIO
- Security: AES/SHA
- Packaging: DIP-14 (2.54 Spacing standard row needle)
- Size: 33.9x28.4x13(±0.2)mm
Features:
- Processor: Cortex-M3
- Support: MPU
- Configurable: CPU frequency, Max 204MHz
- 8-Channel DMA
- Storage: 4MB NOR Flash on chip
- System: Flexible Configuration Support 1.8/2.8/3.3V IO
- Peripheral: 8 GPIO (Include TX0\RX0 AND TX1\RX1), 2 UART, 2 I2C, 5 PWM, 4 Channel, 12-bit AUXADC, 1 SIM Booth
- Low power consumption
It is an NB-IoT development board developed by Ai-Thinker. The main chip scheme used in the NB-IoT part is EC616S. The ultra-integrated NB-IoT SoC development board supports ultra-low power consumption and fully supports the 3GPP Rel14 NB-IoT standard, making it an ultra-cost-effective NB-IoT chip. Integrated with RF transceivers, PA, RF filters, antenna switches, and power management, it offers excellent communication performance and stability in a variety of wireless environments. It also provides excellent power performance in various modes (PSM, DRX, eDRX, connected mode) and a unique MCU mode, providing lower operating current and shorter wake uptime.
Application: Support Open-CPU software conforms to the CMSIS architecture. Supports mainstream cloud services IPv4, IPv6, and non-IP.
Package Includes:

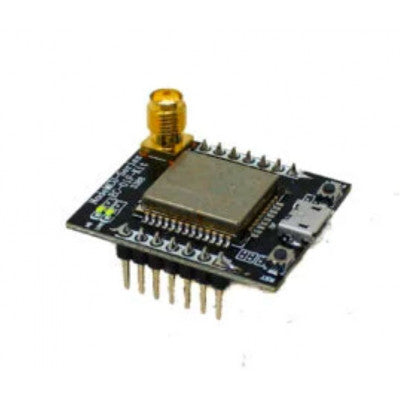

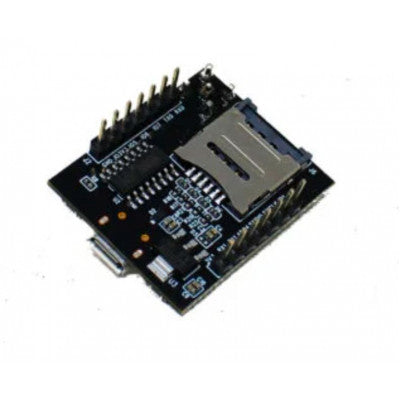

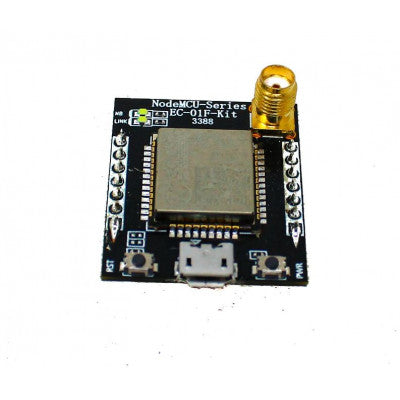

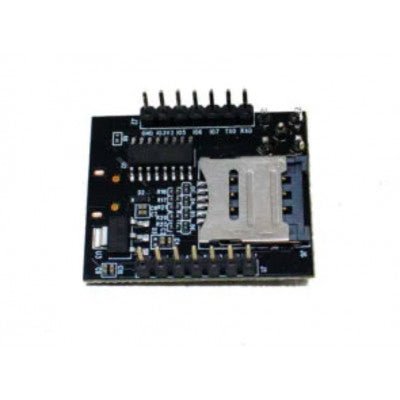

- 1 x Ai Thinker NodeMCU EC-01F NB+IOT Development Board
* Images are for illustration only; actual product may vary.
