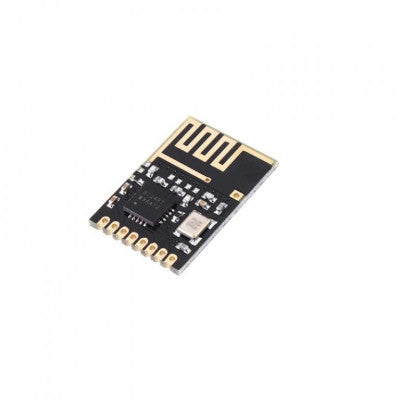

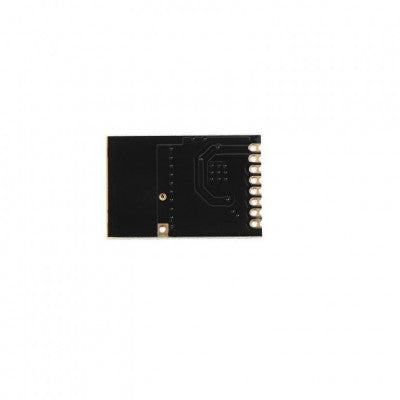

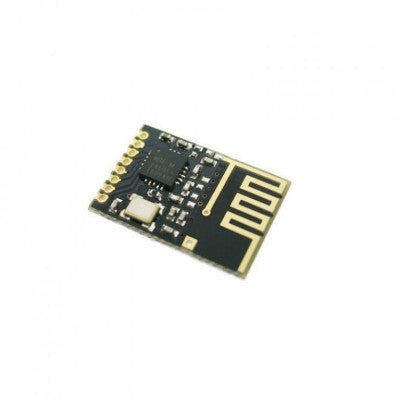

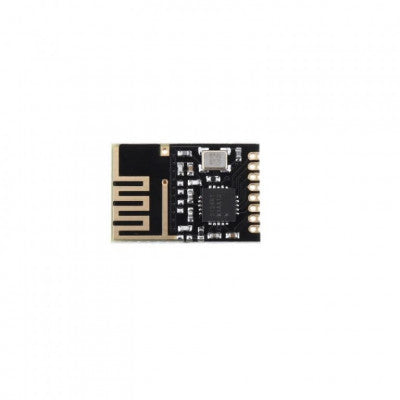

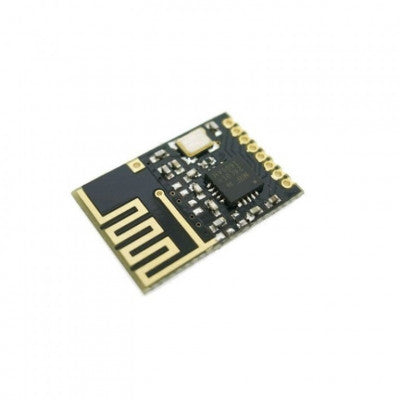

Ai Thinker NF-03 Wireless Transceiver
Compact 2.4G wireless module with high airspeed and SPI interface
- Module model: NF-03
- Modulation method: GFSK / FSK
- Voltage range: 1.9-3.6V
- Antenna: Onboard PCB antenna, gain 2dBi
- Data rate: 2Mbps / 1Mbps / 250Kbps
- Package: SMD-8
- Frequency Range: 2400MHz~2525MHz
- Max Transmit Power: 71 dBm
Top Features:
- Built-in 2.4G antenna, compact size
- Supports data reception of six channels
- Modulation method: GFSK / FSK
- Supports 2Mbps/1Mbps/250Kbps data rate
Ai Thinker NF-03 Wireless Transceiver is a small-sized 2.4G wireless module with a high airspeed of up to 2Mbps and an SPI interface. It offers high stability, high-cost performance, and good spectrum test characteristics. This module, using all industrial-grade components, is ideal for various Internet of Things applications including wireless mouse and keyboard, wireless remote control, somatosensory equipment, active RFID, NFC, and low-power self-organizing network wireless sensor network nodes.
The NF-03 module has a wide power supply voltage range of 1.9~3.6V and features an internally integrated high PSRR LDO. With a compact size and built-in 2.4G antenna, it is easy to use and offers support for data reception of six channels. The module supports modulation methods like GFSK / FSK and data rates of 2Mbps, 1Mbps, and 250Kbps.
Additionally, the NF-03 Wireless Transceiver has a maximum transmit power of +7dBm, receiving sensitivity of <-83dBm @ 2MHz, and an average emission current as low as 110mA. It comes with a four-wire SPI interface with a speed of up to 10MHz and an internal integrated intelligent ARQ baseband protocol engine for efficient data transmission.
- Operating temperature: -20°C to 85°C
- Length(mm): 18
- Width(mm): 12
- Height(mm): 2
- Weight (gm): 3
* Images are for illustration only; actual product may vary.
