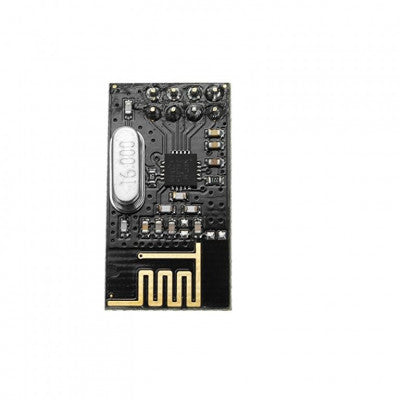

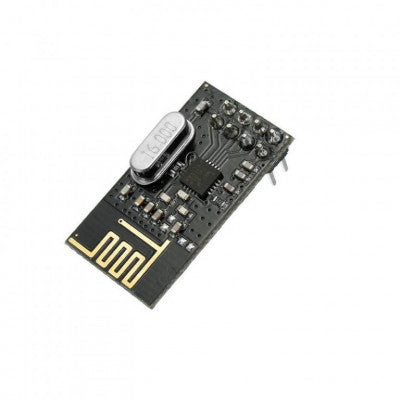

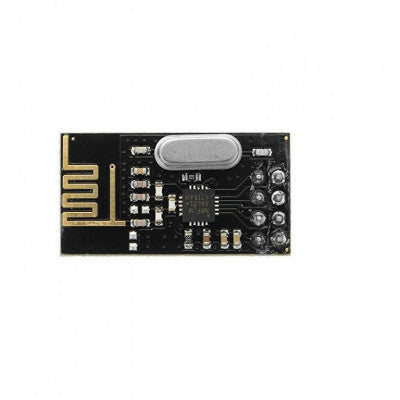

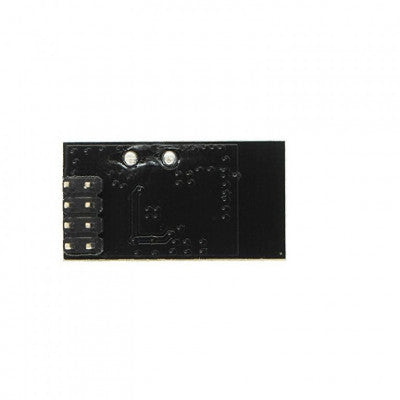

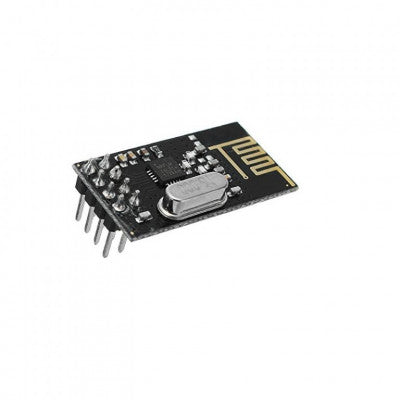

Ai Thinker NF-01-S Wireless Transceiver
High-performance 2.4G wireless module with SPI interface
- Module Model: NF-01-S
- Package: DIP-8
- Frequency Range: 2400MHz~2525MHz
- Max Transmitting Power: 71 dBm
- Power Supply: 1.9~3.6V, Typical 3.3V
- Antenna: Onboard PCB antenna, gain 2dBi
- Receiving sensitivity: -96dBm@250kbps
- Communication Interface: SPI (The maximum rate of up to 10Mbps)
- Operating temperature: -20 ~ 85
-
Average current:
- Emission current: 25mA(7dBm)
- Receive current: 15mA (2Mbps)
- Shutdown: current 1.0uA(Shutdown Mode)
- Length (mm): 28.6
- Width (mm): 15.3
- Height (mm): 3.2 mm
- Weight (gm): 3
Top Features:
- DIP-8 ultra-small package
- Built-in 2.4G antenna
- Supports data reception for six channels
- Supports common modulation like GFSK / FSK
Ai Thinker NF-01-S Wireless Transceiver is a 100mW power 2.4G wireless module with a high-altitude rate of up to 2Mbps. It offers high stability, cost performance, and a compact size, utilizing all-industry components. This module can be widely used in various networking occasions, making it suitable for wireless mouse and keyboard, wireless remote control, somatosensory equipment, active RFID, NFC, and low power consumption network of wireless sensor networks. It is an ideal solution for Internet of Things applications.
The NF-01-S module supports multi-frequency with 126 frequencies to meet the needs of multi-point communication and frequency hopping communication. It features a wide supply voltage range of 1.9 ~ 3.6V, with an average emission current as low as 110mA. The receiver sensitivity is -96dBm @ 250kbps, and the maximum transmit power is +7dBm. It also includes a four-wire SPI interface for up to 10MHz and internal integration of a Smart ARQ Baseband Protocol Engine.
The package includes 1 x Ai Thinker NF-01-S Wireless Transceiver Module.
* Images are for illustration only; actual product may vary.
