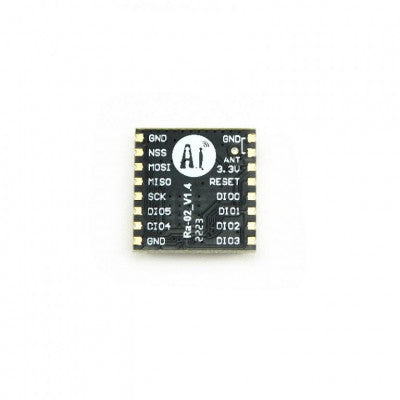

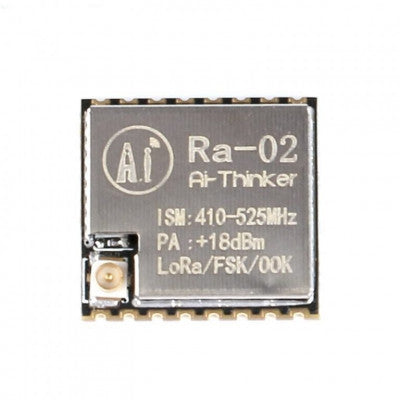

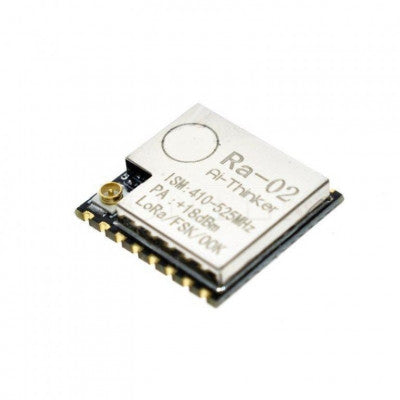

SX1278 LoRa Series Ra-02 Spread Spectrum Wireless Module
Advanced LoRa spread spectrum technology for long-range communication
- Module Model: LoRa-RA-02
- Package/Case: SMD-16
- Interface: SPI
- Programmable Bit Rate: UP to 300Kbps
- Antenna Type: IPEX
- Frequency Range: 410-525 MHz
- Input Supply Range (VDC): 2.5 ~ 3.7
- Transmit Power (dBm): 181 dBm (Max)
Top Features:
- LoRa Spread Spectrum modulation technology
- High sensitivity: down to -148dBm
- Programmable bit rates up to 300kbps
- Automatic RF signal detection
This SX1278 LoRa Series Ra-02 Spread Spectrum Wireless Module is a wireless transmission module based on SEMTECH's SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. It has a strong ability of anti-jamming and has the function of air wake-up Consumption. Can be covering thousands of people in the district environment, particularly suitable for meter reading, smart home, burglar alarm equipment.
The LoRa series module Ra-01 is designed and developed by AI-THINKER Technology. The SX1278 RF module is mainly used for long-range spread spectrum communication. It can resist Minimize current consumption. Thanks to SEMTECH's patented LoRa modulation technology, the SX1278 has a high sensitivity of -148 dBm with a power output of +20 dBm, a long transmission distance and high reliability. At the same time, compared with the traditional modulation technology, LoRa modulation technology has obvious advantages in anti-blocking and selection, which solves the problem that the traditional design scheme cannot consider the distance, interference and power consumption at the same time.
Package Includes:
- 1 x Ai-Thinker LoRa Series Ra-02 Module
Additional Information:
- Operating Temperature (C): -10 to 85
- Length (mm): 17
- Width (mm): 16
- Height (mm): 3.3
- Weight (gm): 6
Images are for illustration only; actual product may vary.
