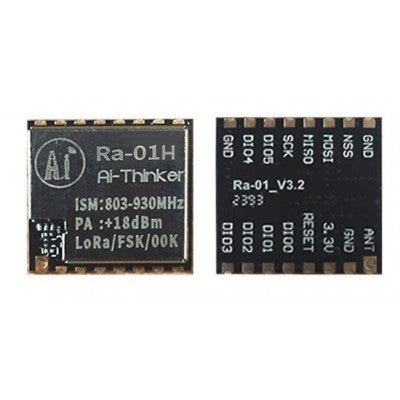

Ai-Thinker LoRa Series Module (Ra-01H)
Long-distance spread spectrum communication module with SX1276 RF chip.
- Module: Ra-01H
- Package: SMD-16
- Size: 17x16x3.2(+0.2)mm
- Antenna: Compatible half hole weld tray (antenna welding required)
- Spectrum Range: 803-930MHz
- Working Temperature: -40°C to 85°C
- Storage Temperature: -40°C to 125°C, < 90%RH
- Power Supply: 2.7-3.6V (typical value 3.3V)
- Support Interface: SPI
- Programmable Bit Rate: 300kbps
Top Features:
- LoRa modem with various mode support
- High sensitivity as low as 140dBm
- Low power consumption
- Small volume double row stamp hole patch package
The Ai-Thinker LoRa Series Module (Ra-01H) is designed for ultra-long-distance spread spectrum communication using the SX1276 RF chip. It supports LoRa remote modem with strong anti-interference capabilities and minimal current consumption. The module utilizes SEMTECH's patent technology for LoRa SX1276, providing high sensitivity and long-range transmission.
With support for various modulation techniques, including FSK, GFSK, MSK, GMSK, Lola, and OOK modes, this module offers high reliability and anti-blocking advantages. It is suitable for applications such as automatic meter reading, home building automation, security systems, and remote communication.
The Ra-01H module operates at an operating voltage of 3.3V with a maximum output of 19dBm and a maximum output current of 105mA. It features low power consumption in both received and stand-by states, making it an efficient choice for long-term use.
Equipped with a small volume double row stamp hole patch package and SPI interface for half-duplex communication, the module ensures reliable data transmission with CRC and up to 256-byte packet engine support.
* Images are for illustration only; actual product may vary.
