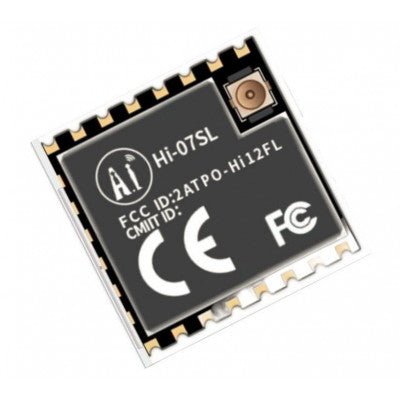

Hi-07SL Wi-Fi Module by Ai-Thinker
A versatile Wi-Fi module for IoT applications in smart homes, security, and cities.
- Model Name: Hi-07SL
- Package: SMD-22
- Size: 17.0x16.0x3.2(±0.2)mm
- Antenna: IPEX
- Frequency Range: 2400 ~ 2483.5MHz
- Operating Temperature: -40°C ~ 85°C
- Storage Temperature: -40°C ~ 125°C, < 90%RH
- Power Supply Range: Voltage 3.0V ~ 3.6V, Electrical current >500mA
- Support Interface: UART/SPI/I2C/GPIO/ADC/PWM/I2S/SDIO
- UART Rate: Default 115200
- Wi-Fi: 802.11b/g/n
- Security: WFA WPA/WPA2 personal, WPS2.0
Top Features:
- 1×1 2.4GHz Frequency band
- Supports IEEE802.11b/g/n data rates
- Maximum rate of 72.2Mbps@HT20 MCS7
- Supports STBC and Short-GI
The Hi-07SL module features the Hi3861LV100core processor chip, a highly integrated 2.4GHz low-power SoC WiFi chip. It supports various data rates in IEEE 802.11 b/g/n protocols and provides a maximum physical layer rate of 72.2Mbit/s. The module supports Huawei Lite OS and third-party components, offering an open and easy-to-use development environment.
The chip integrates IEEE 802.11b/g/n baseband and RF circuits, including power amplifier PA, low noise amplifier LNA, RF balun, antenna switch, and power supply management modules. It supports 20MHz standard bandwidth and 5MHz/10MHz narrow bandwidth. The WiFi baseband supports OFDM technology and is backward compatible with DSSS and CCK technology.
With support for Huawei Lite OS, AT commands, and various interfaces like UART/SPI/I2C/GPIO/ADC/PWM/I2S/SDIO, the Hi-07SL module offers a versatile solution for IoT applications.
Package Includes: 1 x Ai Thinker Hi-07SL WiFi Module
*Images are for illustration only; actual product may vary.
