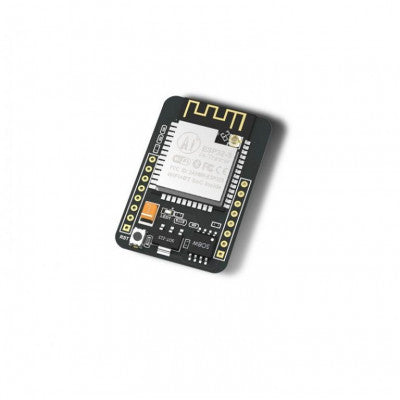

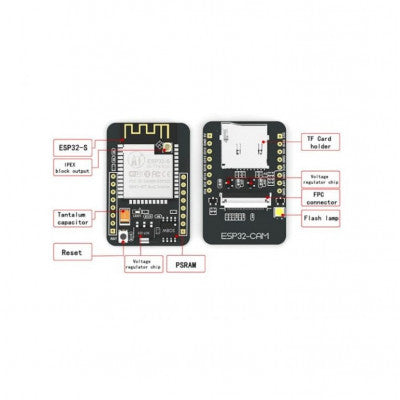

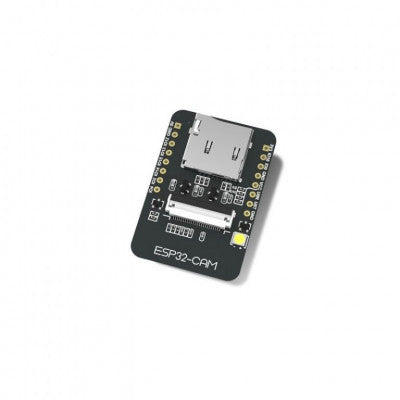

AI-Thinker ESP32 CAM WiFi+Bluetooth with OV2640 Camera Module
An ideal solution for IoT applications with a small-sized camera module
- Module Model: ESP32-CAM
- Custom IO Port: 9
- SPI Flash: Default 32Mbit
- RAM: 520KB SRAM + 4M PSRAM
- WIFI: 802.11 b/g/n/e/i
- Bluetooth Version: 4.2
- Antenna Type: IPEX and PCB
- Input Supply Range (VDC): 3.6 ~ 5
- Current Dissipation (mA): 180 - 310
-
Transmit Power (dBm):
- 802.11b: 17 dBm (@11Mbps)
- 802.11g: 14 dBm (@54Mbps)
- 802.11n: 13 dBm (@MCS7)
-
Receiving Sensitivity:
- 54 Mbps (3/4 64-QAM): -70dBm
- 6 Mbps (1/2 BPSK): -88dBm
- CCK, 1 Mbps: -90dBm
- CCK, 11 Mbps: -85dBm
- MCS7 (65 Mbps, 72.2 Mbps): -67dBm
- UART Baudrate: Default 115200 bps
- Operating Temperature (C): -20 to 80
- Security: WPA/WPA2/WPA2-Enterprise/WPS
- Length (mm): 41
- Width (mm): 27
- Height (mm): 5
- Weight (gm): 8
- Shipment Weight: 0.01 kg
- Shipment Dimensions: 4 x 4 x 1 cm
Top Features:
- Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
- Low-power dual-core 32-bit CPU for application processors
- Supports OV2640 and OV7670 cameras with built-in flash
- Supports multiple sleep modes
The ESP32-CAM is an Ai-Thinkers Original ESP32 CAM WiFi+Bluetooth with OV2640 Camera Module based on the ESP32 chip with the additional facility of using a camera. It is ideal for various IoT applications. The ESP32-CAM has a very competitive small-sized camera module that can operate independently as a minimum system.
Ai-Thinker ESP32 CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals, and other IoT applications. It is an ideal solution for IoT applications.

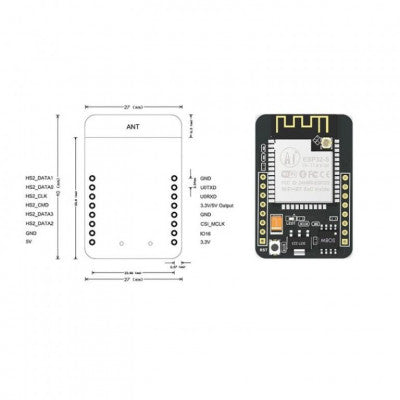

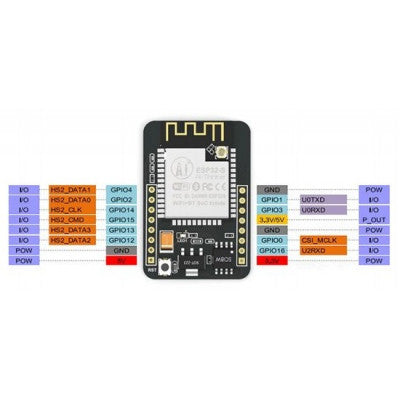

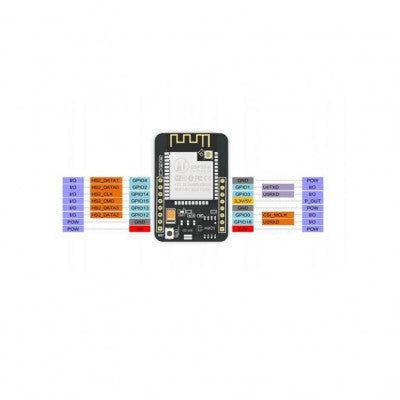

Pin Configuration: ESP32-CAM is packaged in DIP and can be directly plugged into the backplane for quick production. It provides customers with a highly reliable connection method and is convenient for use in various IoT hardware terminals.

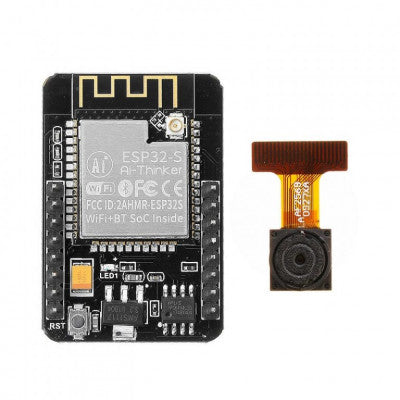

Package Includes: 1 x Ai-Thinker ESP32 CAM Development Board WiFi+Bluetooth with OV2640 Camera Module
*Images are for illustration only; actual product may vary.
