ESP32-C3F WiFi Module by Ai-Thinker
A versatile WiFi+BLE module for IoT, mobile devices, and smart home applications.
- Model: ESP32-C3F
- Core Processor: ESP32-C3
- Operating Frequency: Up to 160MHz
- Memory: 400 KB SRAM, 384 KB ROM, 8KB RTC SRAM
- Flash: Built-in 2Mbit Flash
- Peripheral Interfaces: UART, PWM, SPI, I2S, I2C, ADC, temperature sensor, 15 GPIOs
- Security Mechanisms: Hardware encryption accelerator, flash encryption, secure boot signature verification
- Bluetooth Support: Low-power Bluetooth, Bluetooth 5, Bluetooth mesh
Top Features:
- Wi-Fi 802.11b/g/n, data rate up to 150Mbps
- Supports BLE 5.0 with various data rates
- 32-bit RISC-V single-core processor
- Supports UART, PWM, GPIO, ADC, I2C, I2S interfaces
ESP32-C3F is a feature-rich module with a variety of unique hardware safety mechanisms, making it suitable for encryption products. It supports multiple sleep modes and deep sleep current consumption is less than 5uA. The module also offers support for various Bluetooth rates and modes, along with security features like flash encryption and secure boot signature verification.
Specifications:
- Package: SMD-22
- Size: 24.0x16.0x3.1(±0.2)mm
- Antenna: On-board PCB antenna/IPEX
- Frequency Range: 2400 ~ 2483.5MHz
- Operating Temperature: -40°C ~ 85°C
- Bluetooth: BLE 5.0
- Storage Environment: -40°C ~ 125°C, < 90%RH
- Power Supply Range: Voltage 3.0V ~ 3.6V, Electrical current >500mA
- Support Interface: UART, GPIO, ADC, PWM, I2C, I2S
- IO: IO0, IO1, IO2, IO3, IO4, IO5, IO6, IO7, IO8, IO9, IO10, IO18, IO19, IO20, IO21
- UART Rate: Support 110 ~ 4608000 bps (default 115200 bps)
- Security: WEP, WPA-PSK, WPA2-PSK
Package Includes:

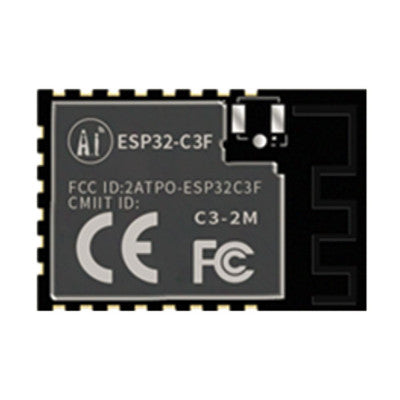

- 1 x Ai Thinker ESP32-C3F 2MB WiFi + BLE Module
* Images are for illustration only; actual product may vary.
