ESP-C3-13U WiFi + BLE Module
A versatile module core processor for IoT, mobile devices, and smart home applications.
- Model: ESP-C3-13U
- Package: SMD-18
- Size: 14.0x18.0x3.1(±0.2)mm
- Antenna: IPEX
- Frequency Range: 2400 ~ 2483.5MHz
- Operating temperature: -40°C ~ 85°C
- Bluetooth: BLE 5.0
- Storage environment: -40°C ~ 125°C, < 90%RH
- Power supply range: Supply voltage: 3.0V ~ 3.6V, Supply current > 500mA
- Support Interface: UART/GPIO/ADC/PWM/I2C/I2S
- IO: IO0, IO1, IO2, IO3, IO4, IO5, IO6, IO7, IO8, IO9, IO10, IO18, IO19, IO20, IO21
- UART Rate: Support 110 ~ 4608000 bps, default 115200 bps
- Security: WEP/WPA-PSK/WPA2-PSK
- SPI Flash: Default 4MByte, support 2MByte version
Top Features:
- Supports Wi-Fi 802.11b/g/n, BLE 5.0
- 32-bit RISC-V single-core processor up to 160MHz
- 400 KB SRAM, 384 KB ROM, 8KB RTC SRAM
- Supports UART/PWM/GPIO/ADC/I2C/I2S interfaces
This ESP32-C3 module is a powerful system-level chip designed for IoT, mobile devices, and smart home applications. It features a 32-bit RISC-V single-core processor with a clock frequency of up to 160MHz. The chip comes with 400 KB SRAM, 384 KB ROM, and 8KB RTC SRAM, offering ample memory for various applications. With built-in Wi-Fi IEEE802.11b/g/n and BLE 5.0 support, this module provides industry-leading low power and RF performance.
The ESP-C3-13U module offers a wide range of peripheral interfaces, including UART, PWM, SPI, I2S, I2C, ADC, and temperature sensor, along with 15 GPIOs. It also boasts unique hardware safety mechanisms such as hardware encryption accelerator and security features like flash encryption and secure boot signature verification.
Supporting multiple sleep modes and low-power Bluetooth options, this module is versatile and energy-efficient. It also supports various communication modes like STA, AP, STA+AP, and mix mode, making it suitable for a range of applications. The ESP-C3-13U module is designed for easy integration and supports local and remote firmware upgrades.
For enhanced security, this module features a perfect security mechanism with encryption support and secure boot signature verification. The ESP-C3-13U module comes in a compact SMD-18 package and is equipped with integrated Wi-Fi MAC/BB/RF/PA/LNA/BLE components.
General AT commands make it easy to use, and the module supports secondary development with an integrated Linux development environment. The ESP-C3-13U module is ideal for various encryption products and applications that require reliable wireless connectivity.
Package Includes:

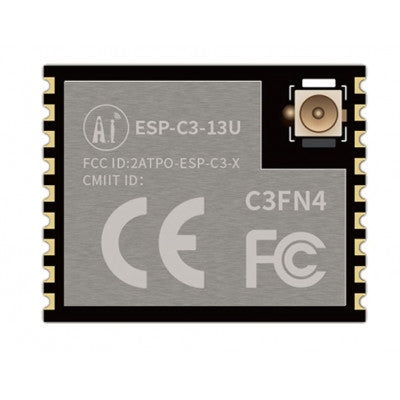

- 1 x Ai Thinker ESP-C3-13U WiFi + BLE Module
*Images are for illustration only; actual product may vary.
