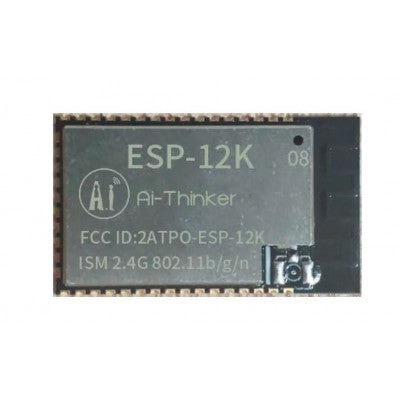

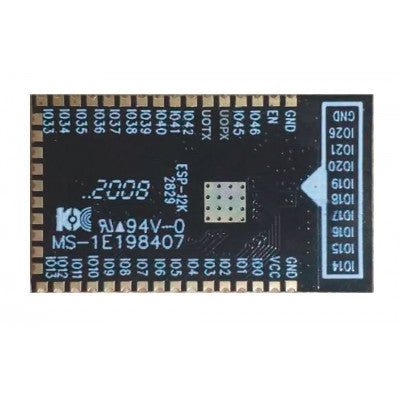

ESP-12K Wi-Fi Module
A highly integrated low-power Wi-Fi module for IoT applications.
- Model: ESP-12K 8MB Flash (without PSRAM)
- Package: SMD-42
- Size: 31.0x18.0x3.0(±0.2)mm
- Antenna: PCB antenna/IPEX connector
- Frequency Range: 2400 ~ 2483.5MHz
- Operating temperature: -40°C ~ 85°C
- Storage environment: -40°C ~ 125°C (< 90%RH)
- Power supply range: Voltage 3.0V ~ 3.6V, Current >500mA
- IO port qty: 37
- Support Interface: UART/GPIO/ADC/PWM/SPI/I2C/LCD/I2S/Camera/IR/USB/DAC
Top Features:
- Complete 802.11b/g/n Wi-Fi SoC module
- Supports UART/GPIO/ADC/PWM/SPI/I2C/LCD/I2S/Camera/IR/USB/DAC interfaces
- Multiple sleep modes with deep sleep current less than 10uA
- Supports Smart Config and Air Kiss for easy network distribution
The ESP-12K Wi-Fi module, developed by Ensink Technology, features the ESP32-S2 core processor. This SoC is designed for IoT, mobile devices, wearables, smart home applications, and more. With industry-leading low-power and RF performance, it supports IEEE802.11b/g/n protocol and offers a variety of peripheral interfaces.
The ESP32-S2 chip, with a 32-bit LX7 single-core processor operating at up to 240MHz, provides 320KB SRAM and 128KB ROM. It supports secondary development without additional microcontrollers and offers various low-power operating states. The chip's security mechanisms include hardware encryption, flash encryption, and secure boot verification.
Package Includes:
1 x Ai Thinker ESP-12K 8MB Flash (without PSRAM) WiFi Module
* Images are for illustration only; actual product may vary.
