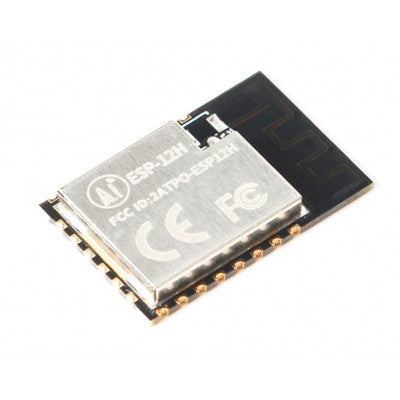

Ai Thinker ESP-12H WiFi Module
Highly integrated low-power Wi-Fi SoC module for IoT applications.
- Model: ESP-12H
- Package: SMD-22
- Size: 24x16x3(±0.2)mm
- Antenna: PCB antenna/IPEX port
- Frequency: 2400~2483.5MHz
- Operating temperature: -40°C~85°C
- Storage temperature: -40°C~125°C, <90%RH
- Power supply: Voltage 3.0V~3.6V, current >500mA
- Interface: UART/GPIO/ADC/PWM/I2C/I2S/SPI/SDIO/DACIO 26
- UART rate: Support 300~4608000bps, default 115200bps
- Security: WEP/WPA-PSK/WPA2-PSK
- SPI Flash: Built-in 2MByte
Top Features:
- Complete 802.11b/g/n Wi-Fi SoC module
- Supports UART/GPIO/ADC/PWM/I2C/I2S/USB interfaces
- Multiple sleep modes with deep sleep current less than 10uA
- Supports Smart Config (APP)/AirKiss for Android and iOS
The ESP-12H module features a highly integrated low-power Wi-Fi SoC designed for IoT, mobile devices, wearables, and smart homes. It is equipped with an Xtensa 32-bit LX7 single-core processor running at up to 240MHz. With built-in 2 MB SRAM and 128 KB ROM, it supports various low-power consumption states to meet different application requirements.
It provides a range of peripheral interfaces including SPI, I2S, UART, I2C, and up to 22 GPIOs. The module supports STA/AP/STA+AP working modes and features hardware security mechanisms such as AES, SHA, and RSA algorithms for enhanced security.
The ESP-12H module also supports local and remote firmware upgrades, AT commands for quick use, and secondary development with integrated development environments for Windows and Linux.
Package Includes:
- 1 x Ai Thinker ESP-12H WiFi Module
* Images are for illustration only; actual product may vary.
