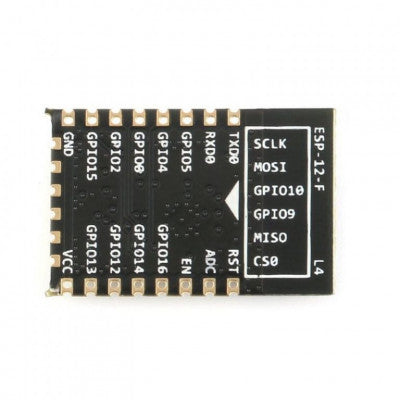

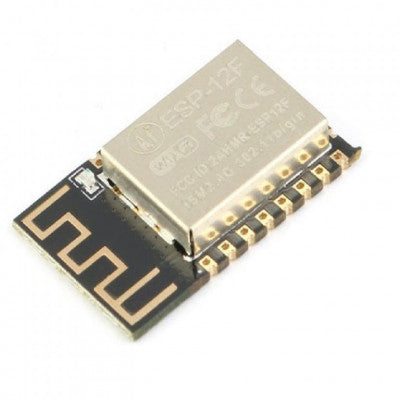

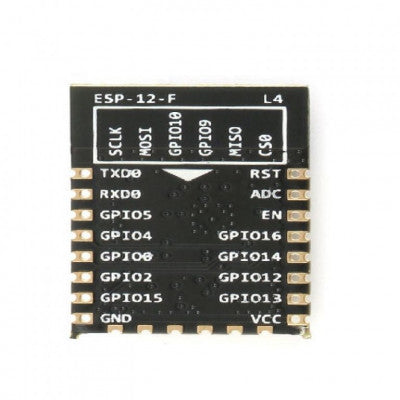

AI Thinker ESP-12F ESP8266 Serial WiFi Module
A high-performance WiFi module with low power consumption and versatile functionality.
- Module Model: ESP-12F
- Package/Case: SMD22
- Antenna Type: PCB
- Input Supply Range (VDC): 3.0 ~ 3.6
-
Transmit Power (dBm):
- 802.11b: 162 dBm (@11Mbps)
- 802.11g: 142 dBm (@54Mbps)
- 802.11n: 132 dBm (@HT20, MCS7)
-
Receiving Sensitivity:
- 54 Mbps (3/4 64-QAM): -70dBm
- 6 Mbps (1/2 BPSK): -88dBm
- CCK, 1 Mbps: -90dBm
- CCK, 11 Mbps: -85dBm
- HT20, MCS7 (65 Mbps, 72.2 Mbps): -67dBm
- UART Baudrate: Support 300 ~ 4608000 bps Default 115200 bps
- Operating Temperature (C): -20 to 85
- Frequency Range: 2412 ~ 2484MHz
- Operating Current: 80mA
- Operating Voltage: 3.0-3.6V
- Security: WEP/WPA-PSK/WPA2-PSK
- IO Port: 9
- Interface: UART/GPIO/ADC/PWM
- Length (mm): 24
- Width (mm): 16
- Height (mm): 3
- Weight (gm): 3
Top Features:
- Low power 32-bit CPU with up to 160MHz clock speed
- Integrated Wi-Fi MAC/BB/RF/PA/LNA
- Supports multiple sleep patterns with deep sleep current as low as 20uA
- Supports Smart Config/AirKiss technology
The ESP-12F WiFi module, developed by Ai-Thinker Technology, is a versatile solution for adding networking capabilities to devices or building network controllers. It integrates the industry-leading Tensilica L106 ultra-low-power 32-bit micro MCU and supports various operating modes and features like remote firmware upgrade and AT commands for quick use.
The ESP8266 is a complete WiFi network solution that can operate independently or as a slave on other host MCUs. With its small form factor and powerful features, it offers endless possibilities for embedding WiFi functionality into different systems.
