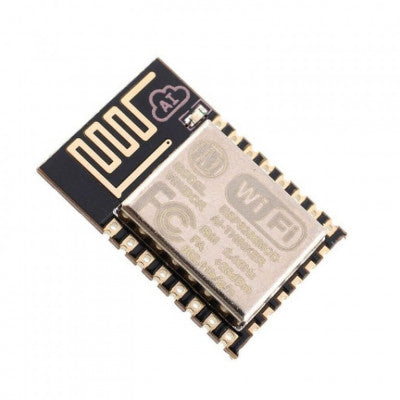

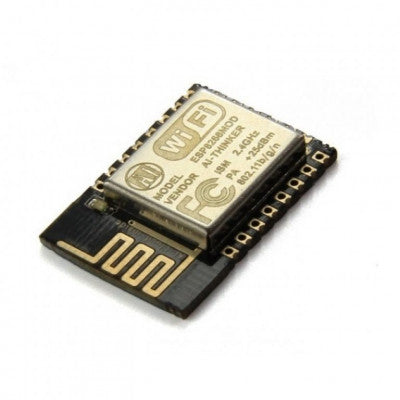

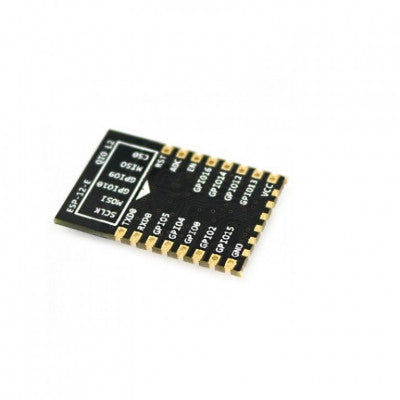

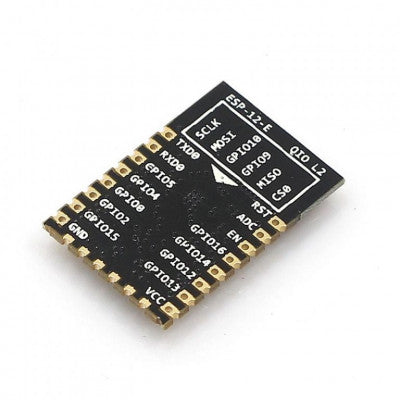

Ai Thinker ESP-12E ESP8266 Serial WiFi Module
An ultra-low power consumption WiFi module for mobile devices and IoT applications.
- Module Model: ESP-12E
- WIFI: 802.11 b/g/n
- Input Supply Range (VDC): 3.0 ~ 3.6
- Receiving Sensitivity: 54Mbps(3/4 64-QAM):-75dBm, 6Mbps(1/2BPSK):-93dBm, CCK,11Mbps -91dBm, DSSS 1Mbps:-98dBm
- Operating Temperature (C): -40 ~ +125
- Security: WPA/WPA2
- Operating Voltage: 3.0-3.6V
- External Interface: N/A
Top Features:
- Integrated low power 32-bit MCU
- Supports antenna diversity
- Supports Smart Link Function for Android and iOS devices
- Deep sleep power <10uA
The Ai Thinker ESP-12E ESP8266 Serial WiFi Module is designed with the Core processor ESP8266, encapsulating Tensilica L106 for ultra-low power consumption. It integrates a 32-bit MCU micro with clock speed support of 80 MHz and 160 MHz. The module supports IEEE802.11 b/g/n agreement and a complete TCP/IP protocol stack.
Users can easily connect their physical devices to a WiFi wireless network for internet or intranet communication. The ESP8266 module is highly integrated, providing the ability to embed WiFi capabilities within other systems or function as a standalone application at a minimal cost and space requirement.
Operating at a temperature range of -40C to 125C, this module offers a standby power consumption of < 1.0mW and supports various operation modes including STA, AP, STA+AP. With features like antenna diversity and Smart Link Function for Android and iOS devices, it ensures efficient and reliable wireless communication.
Specifications:
- Core Processor: ESP8266
- Clock Speed: 80 MHz, 160 MHz
- Operating Current: 80mA
- Frequency Range: 2.4GHz-2.5GHz
- Length (mm): 16
- Width (mm): 24
- Height (mm): 3
Package includes: 1 x Ai Thinker ESP-12E ESP8266 Serial WiFi Module
