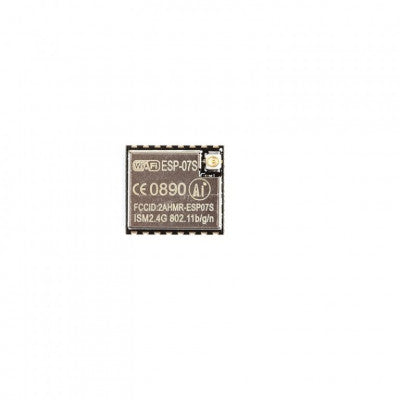

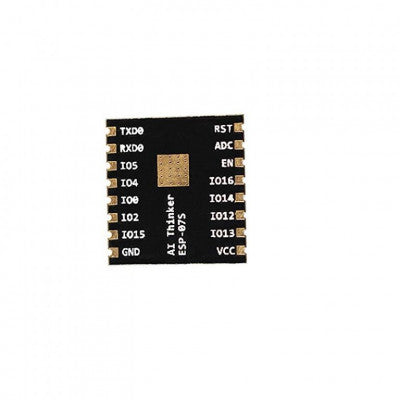

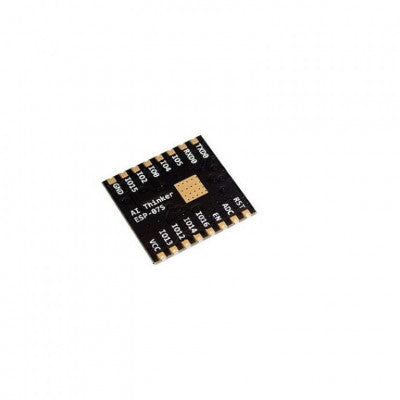

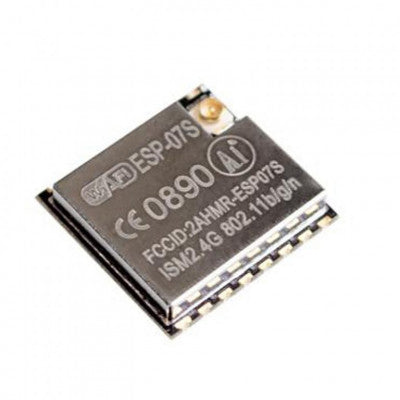

Ai Thinker ESP-07S ESP8266 Serial WiFi Module
Compact WiFi module with U.FL antenna connector and IEEE802.11 b/g/n support
- Module Model: ESP-07s
- WIFI: 802.11 b/g/n
- Flash: 4 MB
- Operating Temperature (C): -40 to 125
- Security: WPA/WPA2
- Frequency Range: 2.4GHz-2.5GHz (2400M-2483.5M)
- Operating Voltage: 3.0~3.6V
- Operating Current: 80mA
- External Interface: N/A
- Length (mm): 16
- Width (mm): 17
- Height (mm): 3
- Weight (gm): 3
Top Features:
- 802.11 b/g/n
- Integrated low power 32-bit MCU
- Supports antenna diversity
- Operating Voltage: 3.0-3.6 V
Ai Thinker ESP-07S ESP8266 Serial WiFi Module is a compact version of the ESP-12F and ESP-12E WiFi modules, without an onboard antenna. It supports standard IEEE802.11 b/g/n agreement and a complete TCP/IP protocol stack. Users can easily integrate this module into existing devices or build separate network controllers. The module is designed with a U.FL antenna connector and is 100% pin-compatible with ESP-12F and ESP-12E modules.
The module uses the popular ESP8266 chip and can be easily programmed using platforms like Arduino. With integrated features like TR switch, balun, LNA, power amplifier, and matching network, it offers reliable performance. The module supports various operation modes and functions like Smart Link for Android and iOS devices.
Operating at an operating current of 80 mA and voltage range of 3.0-3.6 V, the module ensures efficient power consumption. It also supports deep sleep mode with minimal power consumption and quick wake-up time for transmitting packets.
You can solder this module onto a board designed for ESP-12E or ESP-12F boards, making it versatile for different projects.
