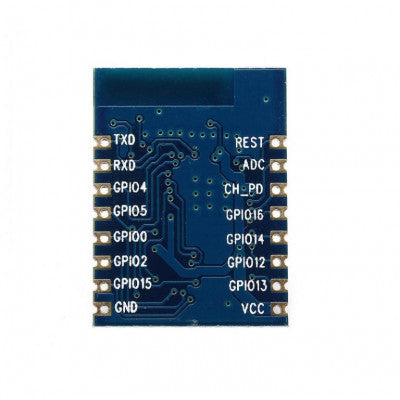

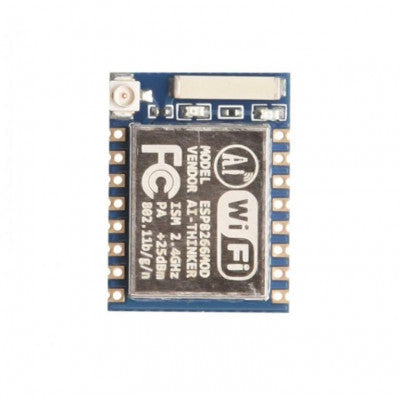

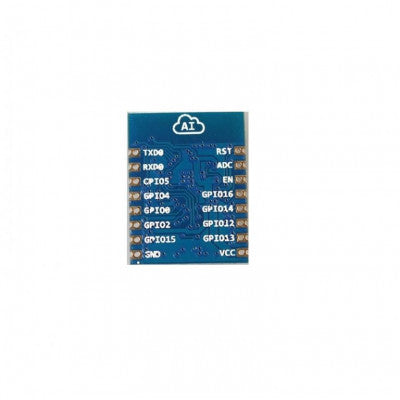

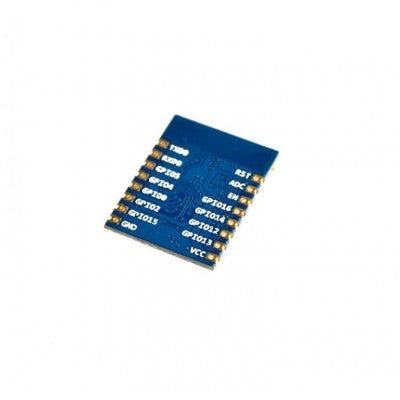

Ai Thinker ESP-07 ESP8266 Serial WiFi Module
A highly competitive WiFi module with ultra-low power technology
- Module Model: ESP-07
- Package/Case: SMD-16
- SPI Flash: Default 8Mbit
- Antenna Type: Ceramic and IPEX
- Input Supply Range (VDC): 3.0 ~ 3.6
-
Transmit Power (dBm):
- 802.11b: 162 dBm (@11Mbps)
- 802.11g: 142 dBm (@54Mbps)
- 802.11n: 132 dBm (@HT20, MCS7)
-
Receiving Sensitivity:
- 54 Mbps (3/4 64-QAM): -70dBm
- 6 Mbps (1/2 BPSK): -88dBm
- CCK, 1 Mbps : -90dBm
- CCK, 11 Mbps: -85dBm
- HT20, MCS7 (65 Mbps, 72.2 Mbps): -67dBm
- Interface: UART/GPIO/ADC/PWM
- IO Port: 9
- Frequency Range: 2412 ~ 2484MHz
- UART Baudrate: Support 300 ~ 4608000 bps Default 115200 bps
- Operating Temperature (C): -20 to 85
- Security: WEP/WPA-PSK/WPA2-PSK
- Length (mm): 21.2
- Width (mm): 16
- Height (mm): 3
- Weight (gm): 10
Features:
- Smallest 802.11b/g/n Wi-Fi SOC module
- Low power 32-bit CPU, up to 160MHz clock speed
- Integrated Wi-Fi MAC/BB/RF/PA/LNA
- Supports STA/AP/STA + AP operation mode
This amazingly priced wireless module allows any microcontroller to connect to an 802.11b/g/n wireless network. It can be used in various networking applications such as home automation, industrial wireless control, and more. The ESP-07 is packaged in SMD-16 for easy welding and provides high reliability connections.
Control of the module is simple with pre-flashed serial application supporting AT serial commands. It features an on-board ceramic antenna and a uFL connector for an external antenna.
Supports Smart Config/AirKiss technology, UART baudrate up to 4Mbps, and remote firmware upgrade (FOTA).
