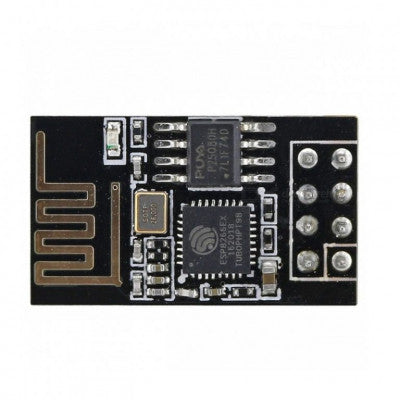

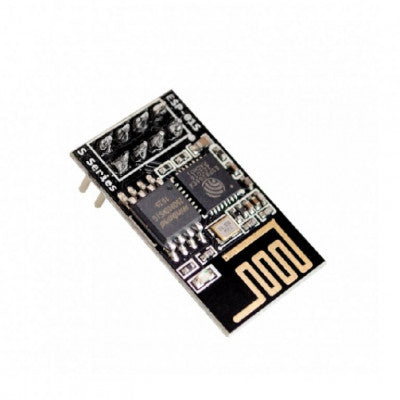

ESP-01S ESP8266 WiFi Module
A cost-effective WiFi module with AT command set firmware
- Flash size: 1MB (8Mbit)
- Modes: AP, STA, AP+STA

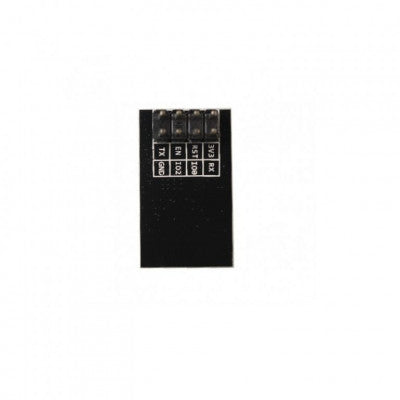

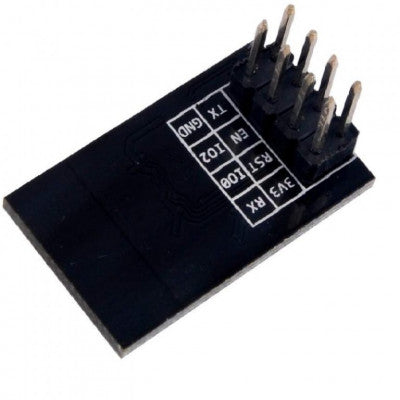

- Interface: Four pins - VCC-3V3, GND, TXD, RXD
- GPIOs: Two extra GPIOs available
- Firmware: AT commands firmware
Top Features:
- 1MB Flash size
- Competitive price
- Simple AT commands
- Internal LWIP interface
The ESP-01S ESP8266 WiFi Module is a self-contained SOC with integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. The ESP8266 is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor. Each ESP-01S ESP8266 module comes pre-programmed with an AT command set firmware, meaning, you can simply hook this up to your Arduino device and get about as much WiFi-ability as a WiFi Shield offers (and that's just out of the box)! The ESP-01S ESP8266 module is an extremely cost-effective board with a huge, and ever-growing, community.
This module has a powerful enough on-board processing and storage capability that allows it to be integrated with the sensors and other application-specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, including the front-end module, is designed to occupy minimal PCB area. The ESP8266 supports APSD for VoIP applications and Bluetooth co-existence interfaces, it contains a self-calibrated RF allowing it to work under all operating conditions and requires no external RF parts.
Images are for illustration only; actual product may vary.
