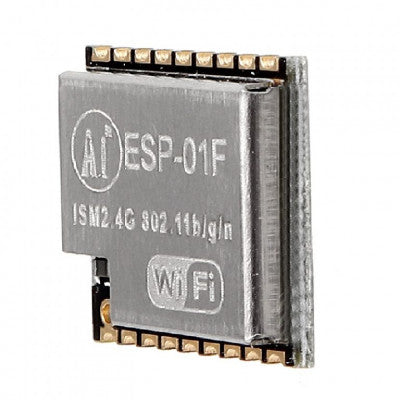

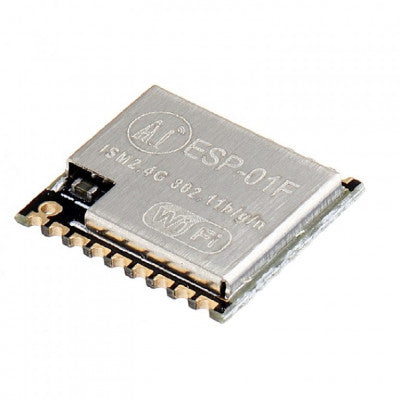

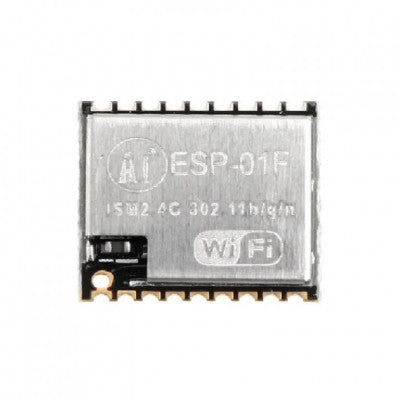

Ai Thinker ESP-01F ESP8285 Serial WiFi Module
Highly competitive package size and ultra-low technology for versatile networking applications.
- Module Model: ESP-01F
- Package/Case: SMD18
- SPI Flash: Chip built-in 1MB flash
- Antenna Type: PCB
- Input Supply Range (VDC): 3.0 ~ 3.6
-
Transmit Power (dBm):
- 802.11b: 162 dBm (@11Mbps)
- 802.11g: 142 dBm (@54Mbps)
- 802.11n: 132 dBm (@HT20, MCS7)

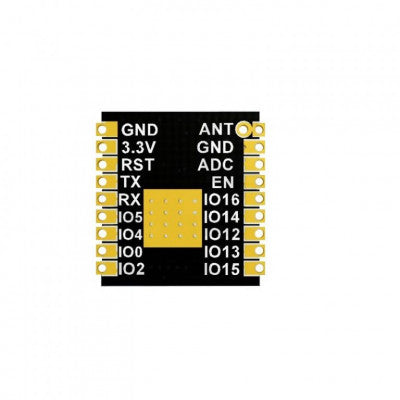

- Interface: UART/GPIO/ADC/PWM
-
Receiving Sensitivity:
- 54 Mbps (3/4 64-QAM): -70dBm
- 6 Mbps (1/2 BPSK): -88dBm
- CCK, 1 Mbps: -90dBm
- CCK, 11 Mbps: -85dBm
- HT20, MCS7 (65 Mbps, 72.2 Mbps): -67dBm
- UART Baudrate: Support 300 ~ 4608000 bps Default 115200 bps
- Operating Temperature (C): -20 to 85
- IO Port: 9
- Frequency Range: 2412 ~ 2484MHz
- Security: WEP/WPA-PSK/WPA2-PSK
- Length (mm): 11
- Width (mm): 10
- Height (mm): 2.8
- Weight (gm): 3
Top Features:
- Smallest 802.11b/g/n Wi-Fi SOC module
- Up to 160MHz clock speed
- Integrated Wi-Fi MAC/BB/RF/PA/LNA
- Supports Smart Config/AirKiss technology
The core processor ESP8285 integrates the industry-leading Tensilica L106 ultra-low-power 32-bit micro MCU in a small package with 16-bit Lite mode, clocked at Supports 80 MHz and 160 MHz, supports RTOS, and integrates Wi-Fi MAC/BB/RF/PA/LNA. The ESP-01F WiFi module supports the standard IEEE802.11 b/g/n protocol, a complete TCP/IP protocol stack. Users can use this module to add networking capabilities to existing devices or to build separate network controllers. The ESP8285 is a high-performance wireless SOC that offers maximum utility at the lowest cost and unlimited possibilities for embedding WiFi functionality into other systems.
General AT commands can be used quickly. Support for the two development, integration of windows, Linux development environment.
Package includes:
- 1 x Ai Thinker ESP-01F ESP8285 Serial WiFi Module
*Images are for illustration only; actual product may vary.
