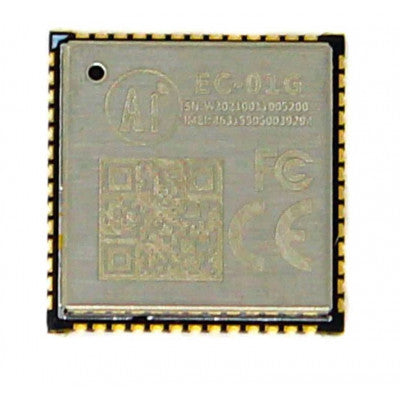

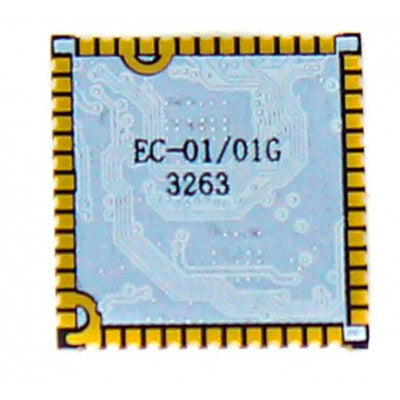

EC-01G NB+GPS Module by Ai-Thinker
A high-performance NB-IoT and GPS module with ultra-low power consumption
- Processor: Cortex-M3, support MPU
- Storage: 4MB NOR Flash on chip
- System: Totally support 3GPP R14 NB-IoT
- Peripheral: 16 GPIO, 3 UART, 2 SSP, 2 I2C, low power consumption
Top Features:
- Ultra-highly integrated NB-IoT SoC
- Supports 3GPP Rel14 NB-IoT standard
- High-performance BDS/GNSS multi-mode satellite navigation receiver SoC
- Supports China’s Beidou, US GPS, and Russia’s GLONASS
The EC-01G NB+GPS module by Ai-Thinker features the EC616S chip for NB-IoT and AT6558R chip for GPS. The NB chip offers ultra-low power consumption and full support for 3GPP Rel14 NB-IoT standard. On the other hand, the GPS chip is a high-performance BDS/GNSS multi-mode satellite navigation receiver SoC single chip. It supports various satellite navigation systems and provides excellent communication performance and stability in wireless environments.
With support for mainstream cloud services and various communication protocols, this module is versatile and cost-effective for IoT applications.
- Model: EC-01G
- Antenna: External antenna
- Power Supply: Supply voltage 3.3V ~ 4.5V, current ?500mA
- Spectral Range: Band3, Band5, Band8
- Working Temperature: -40°C ~ 85°C
- Storage Environment: -40°C ~ 125°C, < 90%RH
- Flash: 4MB NOR Flash
- Support Interface: SSP/UART/I2C/PWM/ADC/GPIO
- Serial Port: Support 110 ~ 4608000 bps (default 9600 bps)
- Package: SMD-54
Package Includes:
- 1 x Ai Thinker EC-01G NB-IoT Module
*Images are for illustration only; actual product may vary.
