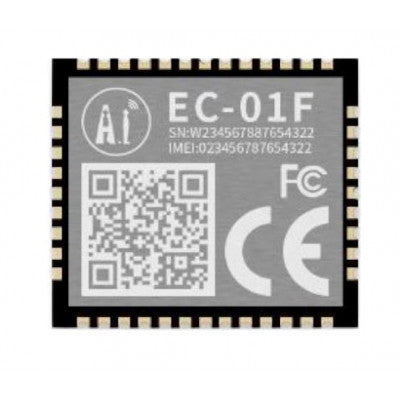

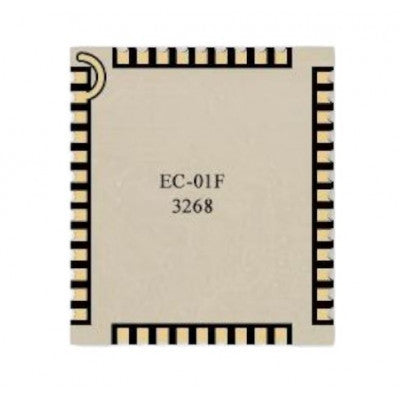

EC-01F NB-IoT Module
An ultra-highly integrated NB-IoT module with excellent communication performance and low power consumption.
- Model: EC-01F
- Package: SMD-44
- Size: 17.7x15.8x2.8(±0.2)mm
- Antenna: External antenna
- Power Supply: Supply voltage 3.3V ~ 4.5V, current ?500mA
- Spectral Range: Band3, Band5, Band8
- Working Temperature: -40°C ~ 85°C
- Storage Environment: -40°C ~ 125°C, < 90%RH
- Flash: 4MB NOR Flash
- Support Interface: SSP/UART/I2C/PWM/ADC/GPIO
- Serial Port: Support 110 ~ 4608000 bps (default 9600 bps)
Features:
- Processor: Cortex-M3, support MPU
- Storage: 4MB NOR Flash on chip
- Peripheral: 16 GPIO, 3 UART, 2 SSP, 2 I2C, low power consumption
- Communication: Fully support 3GPP R14 NB-IoT
EC-01F is an NB module developed by Ai Thinker, featuring the EC616S chip with ultra-high integration and support for the 3GPP R14 NB-IoT standard. It offers excellent communication performance, stability in various wireless environments, and low power consumption in different modes.
The module supports Open-CPU software conforming to the CMSIS architecture and mainstream cloud services. It also supports IPv4, IPv6, and non-IP UDP, TCP protocols.
Unique MCU mode provides lower working current and shorter wake-up time, making it a cost-effective choice for NB-IoT applications.
* Images are for illustration only; actual product may vary.
