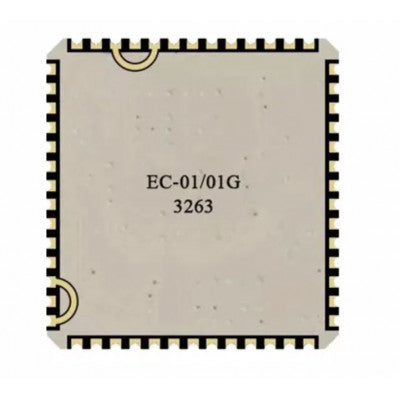

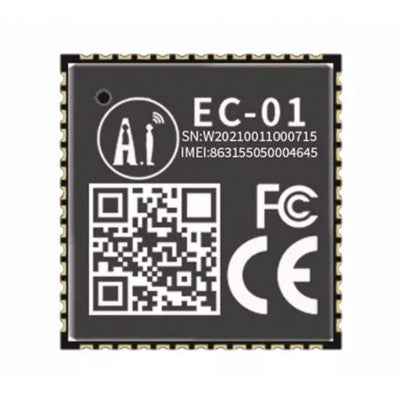

EC-01 NB-IoT Module
A cost-effective NB-IoT module with ultra-low power consumption and integrated RF components.
- Model: EC-01
- Package: SMD-54
- Size: 19.2x18.8x2.8(±0.2)mm
- Antenna: External antenna
- Power Supply: Supply voltage 3.3V ~ 4.5V, current ?500mA
- Spectral Range: Band3, Band5, Band8
- Working Temperature: -40°C ~ 85°C
- Storage Environment: -40°C ~ 125°C, < 90%RH
- Flash: 4MB NOR Flash
- Support Interface: SSP/UART/I2C/PWM/ADC/GPIO
- Serial Port: Support 110 ~ 4608000 bps, default 9600 bps
Key Features:
- Integrated RF components and power management
- Excellent communication performance in various environments
- Low power consumption in different modes
- Unique MCU mode for lower current and faster wake-up
The EC-01 is a NB module developed by Ai-Thinker, featuring the EC616S chip with ultra-high integration and support for the 3GPP Rel14 NB-IoT standard. It offers a cost-effective solution for NB-IoT applications.
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
