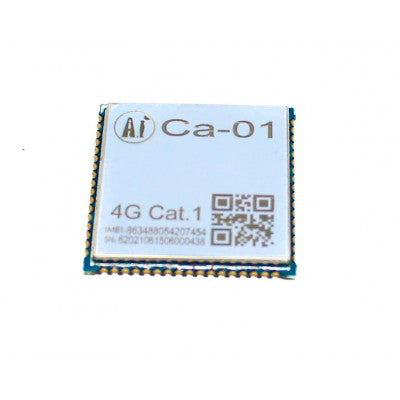

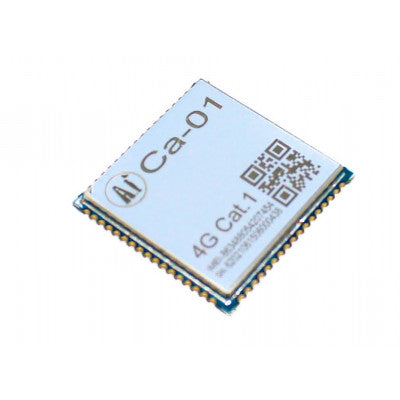

Ai Thinker Ca-01 LTE Cat.1 Module
An ultra-small LTE Cat.1 bis module with Ziguang’s UIS8910 platform
- Module: Ca01
- Communication standard: 4G
- Applicable frequency band: LTE-FDD: B1/B3/B5/B, LTE-TDD: B34/B38/B39/B40/B41
- General characteristics: 3GPP E-UTRA Release 13
- Bandwidth: 1.4/3/5/10/15/20MHz
- Module size: 24.0mm X 24.0mm x 2.3mm

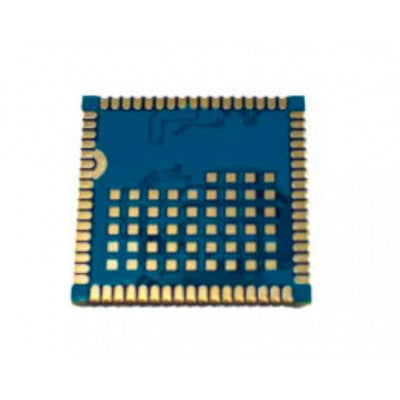

- Packaging method: stamp hole + LGA
- Module weight: about 2.6g
- Power supply voltage: 3.3V ~ 4.3V, typical value 3.8V
- Supports: VoLTE, Bluetooth, Wi-Fi positioning, SPI, MIPI Camera, SPI LCD, 6×6 scan keyboard
- Temperature range: Normal working temperature: -35 ° C ~ + 70 ° C, Limit working temperature: -40 ° C ~ + 85 ° C
- LTE-TDD: Class3(23dBm+1/-3dB)
- LTE-FDD: Class3(23dBm+ -2dB)
- UART 1: For AT commands and data transmission "Maximum baud rate 921600bps, default 115200bps ”Support hardware flow control (CTS / RTS)
- UART2: For debugging information output, Baud rate 115200bps
- HOST UART: Used to output debugging information
- ZSP UART: Used to output debugging information
Features:
- Support Cat.1
- Support VoLTE
- Support 1.4 ~ 20MHz RF bandwidth
- LTE-TDD: uplink and downlink configuration 2
Ca-01 is a 4G full Netcom module that offers maximum flexibility in product design. It supports LTE 3GPP Rel.13 technology and is compatible with various operators and products.
The module comes with a USIM card interface supporting USIM / SIM card: 1.8V and 3V. It also features a USB interface compatible with USB2.0 (slave mode) with a data transfer rate of up to 480Mbps. The module can be used for AT commands, data transmission, software debugging, and software upgrade.
Additionally, it has a USB virtual serial port driver that supports various operating systems such as Windows 7 / 8.1 / 10, Linux 2.6.x / 3.x / 4.1, Android 4.x / 5.x /6.x17.x.
Package Includes:
- 1 x Ai Thinker Ca-01 LTE Cat.1 Module
*Images are for illustration only; actual product may vary.
