Ai Thinker BW16 Dual-Frequency Wi-Fi Bluetooth SoC Module
Dual-frequency Wi-Fi and Bluetooth 5.0 module with high-performance MCU
- Model: BW16
- Package: SMD-16
- Dimensions (mm): 24x16x3mm
- Antenna Form: Onboard PCB antenna or IPEX antenna
- Spectrum Range: 2400-2483.5MHz or 5180-5825MHz
- Bluetooth: BT5.0
- Bluetooth Frequency Range: 2.402GHz-2.480GHz
- Support Interface: UART / GPIO / ADC / PWM / IIC / SPI / SWD
- Power Supply Range: Voltage 3.0V ~ 3.6V, typical value 3.3V, power supply current > 450mA
- Operating Temperature: -20°C ~ 70°C
- Storage Environment: -40°C ~ 125°C, <90% RH
- Certification: RoHS, FCC, CE, SRRC
Top Features:
- Supports dual-frequency WLAN (2.4GHz or 5GHz)
- Integrates ARM V8 high-performance MCU
- Low-power Bluetooth 5.0 technology
- Configurable GPIO ports for peripheral control
Ai Thinker BW16 is a dual-frequency Wi-Fi Bluetooth SoC module based on RTL8720DN. It supports dual-frequency WLAN (2.4GHz or 5GHz) and low-power Bluetooth 5.0. The module integrates ARM V8 high-performance MCU, ARM V8M low-power MCU, WLAN (802.11 a/b/g/n), MAC, Bluetooth baseband, and RF baseband. It provides configurable GPIO ports for controlling different peripherals. Additionally, BW16 integrates internal storage, supports simple application development, and can achieve complete WIFI and BT5.0 protocol functions.
Package Includes:

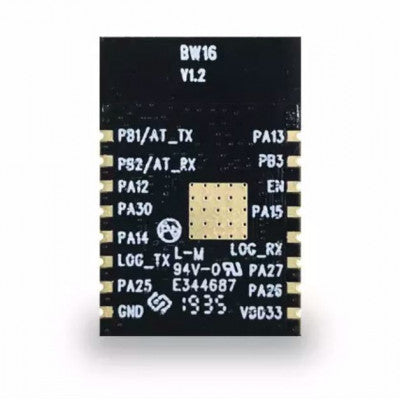

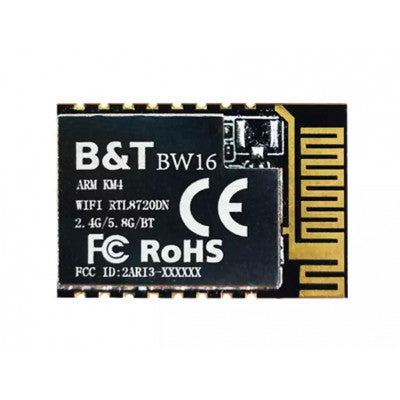

- 1 x Ai Thinker BW16 WiFi SOC module
Images are for illustration only; actual product may vary.
