BW15 module
Highly integrated Wi-Fi and Bluetooth SOC module
- Model: BW15
- Package: SMD-16
- Dimensions (mm): 24x16x3(±0.2)mm
- Antenna form: On-board PCB antenna/ IPEX antenna
- Spectrum range: 2400-2483.5MHz
- Bluetooth: Bluetooth 4.2BLE
- Operating temperature: -40C ~ 85 ° C
- Storage environment: -40 ° C ~ 125 ° C, <90% RH
- Power supply range: Supply voltage 3.0 V ~3.6 V, supply current >500 mA
- Support interface: UART / GPIO / ADC / PWM / I2C / SPI / PDM
Features:
- Support 802.11 b/g/n 1x1, 2.4GHz
- Support MCS7 up to 20 MHz / 40MHz
- Low Power Architecture
- Support low power transmit/receive, suitable for short-range applications
The BW15 module is a highly integrated Wi-Fi and Bluetooth SOC module featuring the main chip RTL8720CF. This chip supports 2.4 GHz wireless LAN (WLAN) and Bluetooth low power (v4.2). It combines Real-M300MCU in a single chip WLAN MAC with the 1T1R function of WLAN baseband. The module provides configurable GPIO, which can be set up as digital peripherals for various applications and control purposes. Additionally, the BW15 integrates internal memory to achieve complete WIFI and BLE 4.2 protocol functions, supporting simple application development.
The internal coexistence mechanism between WIFI and BT shares the same antenna, supporting STA/AP/STA+AP operating modes. It also supports One-click distribution network for Android, IOS Smart Config(APP)/AirKiss and enables local serial port upgrades and remote firmware upgrades (OTA). General AT commands can be used quickly for ease of use.
Package Includes:

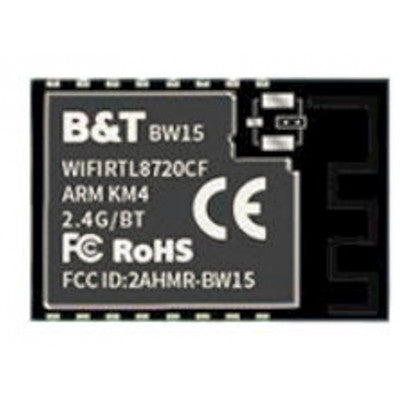

- 1 x Ai Thinker BW15 WiFi SOC module
