BU01 Data Transmission UWB Module
High-precision UWB module for accurate positioning and fast data transmission.
- Model: BU01
- Package: SMD-24
- Size: 24x13x2.9mm (±0.2mm)
- Protocol: IEEE 802.15.4-2011 UWB
- Interface: SPI
- Frequency Range: 3.5~6.8 GHz
- Antenna: Onboard PCB antenna, 40 meters transmission distance
- Transmitting Power: 802.11b: 16dBm±2dB, 802.11g: 16±2dBm, 802.11n: 16±2dBm
- Supply Voltage: 2.8~3.6V, default 3.3V
- Operating Temperature: -40°C~85°C
Key Features:
- Integrated antenna and RF circuits
- Positioning accuracy of 10cm
- Data transmission rate up to 6.8Mbps
- Widely used in nursing homes and parking lots
BU01 was developed by Ai-Thinker based on Deca Wave's DW1000 chip, which integrates an antenna, all RF circuits, power management, and clock modules. The module can use two-way ranging or TDOA positioning system, positioning accuracy of 10cm, data transmission rate of up to 6.8Mbps, widely used in nursing homes, parking lots, and other fields.

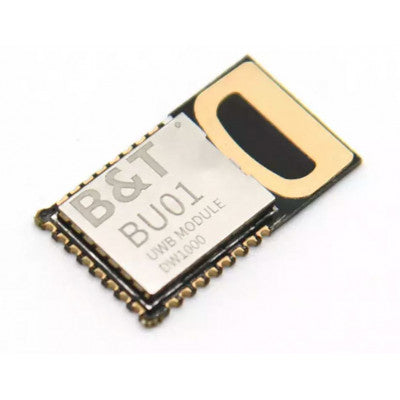

Package Includes: 1 x Ai Thinker BU-01 Data Transmission UWB Module
* Images are for illustration only; actual product may vary.
