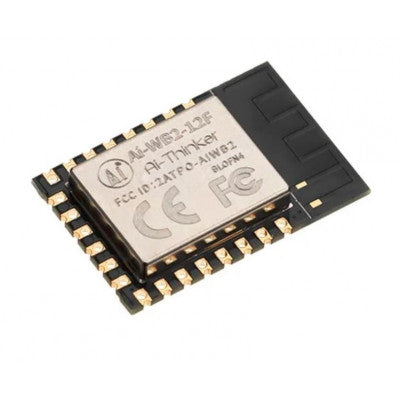

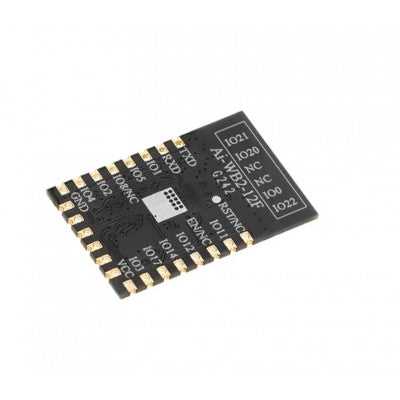

Ai Thinker Ai-WB2-12F WiFi + BLE Module
A Wi-Fi & BT module with BL602 chip for IoT, mobile devices, and smart homes.
- Model: Ai WB2 12F
- Package: SMD 22
- Size: 24.0x16.0x3.1(±0.2)mm
- Antenna onboard: PCB antenna
- Frequency: 2400 ~ 2483.5MHz
- Operating temperature: 40°C ~ 85°C
- Storage temperature: 40°C ~ 125°C, < 90%RH
- Power supply Support voltage: 2.7V ~ 3.6V
- Supply current: ?500mA
- Interface: UART/GPIO/ADC/PWM/I2C/SPI
- IO: 15
- UART: rate Default 115200 bps
- Security: WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
- Flash: Default 4MByte, MAX support 16MByte
Features:
- Support IEEE 802.11 b/g/n protocol
- Wi-Fi Security Support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
- Support 20MHz bandwidth, Max rate 72.2Mbps
- Bluetooth BLE 5.0, Bluetooth Mesh
The Ai WB2 12F is a Wi-Fi & BT module developed by Ai Thinker Technology Co., LTD. It features a BL602 chip as the core processor, supporting Wi-Fi 802.11b/g/n protocol and BLE 5.0 protocol. The BL602 chip includes a low power 32-bit RISC CPU, 276KB RAM, and various peripheral interfaces such as SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR, and GPIO, making it suitable for IoT, mobile devices, wearable electronics, smart homes, and more.
The module also supports secure start-up with mirroring using ECC-256 signature, QSPI/SPI Flash On-The-Fly AES Decryption, AES encryption engine, SHA-1/224/256, true Random number generator (TRNG), Public key Accelerator (PKA), and various sleep modes with deep sleep current of 12?A. It offers a universal AT instruction for quick start and supports secondary development with integrated Windows and Linux development environments.
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
*Images are for illustration only; actual product may vary.*
