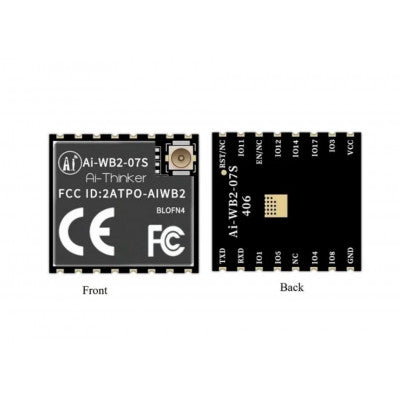

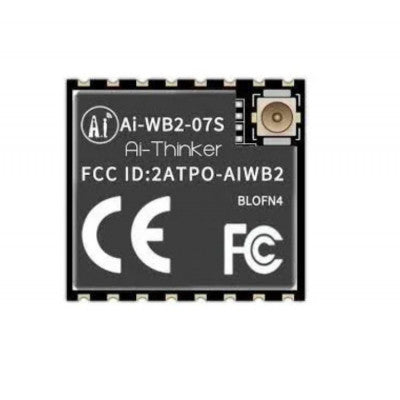

Ai Thinker Ai-WB2-07S WiFi + BLE Module
A versatile Wi-Fi & BT module for IoT and electronic devices.
- Model: Ai WB2 07S
- Package: SMD 22
- Size: 17.0x16.0x3.1(±0.2)mm
- Antenna Connector: IPEX
- Frequency: 2400 ~ 2483.5MHz
- Operating temperature: 40°C ~ 85°C
- Storage temperature: 40°C ~ 125°C, < 90%RH
- Power supply: Support voltage 2.7V ~ 3.6V
- Supply current: ?500mA
- Interface: UART/GPIO/ADC/PWM/I2C/SPI
- IO: 15
- UART: rate Default 115200 bps
- Security: WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
- Flash: Default 4MByte, MAX support 16MByte
Top Features:
- Supports IEEE 802.11 b/g/n protocol
- Wi-Fi Security: WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
- Bluetooth BLE 5.0, Bluetooth Mesh
- Supports a variety of sleep modes, deep sleep current 12?A
The Ai WB2 07S is a Wi-Fi & BT module developed by Shenzhen Ai Thinker Technology Co., LTD. It features a BL602 chip as the core processor, supporting Wi-Fi 802.11b/g/n and BLE 5.0 protocols. With a low power 32-bit RISC CPU, 276KB RAM, and various peripheral interfaces, it is ideal for IoT, mobile devices, wearables, and smart homes.
The module integrates Wi-Fi MAC/BB/RF/PA/LNA/BT and supports secure start-up with ECC 256 signature. It also offers on-the-fly AES decryption, AES encryption engine, SHA support, TRNG, PKA, and more. The Ai WB2 07S supports secondary development and provides a universal AT instruction set for quick integration.
Package Includes: 1 x Ai Thinker Ai-WB2-07S WiFi + BLE Module
*Images are for illustration only; actual product may vary.
