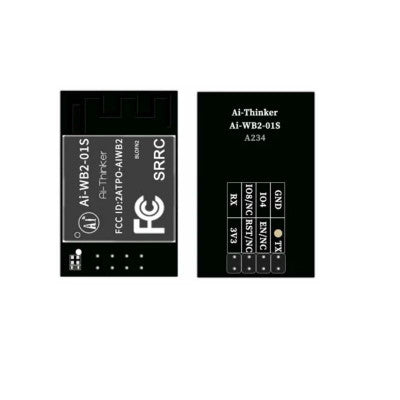

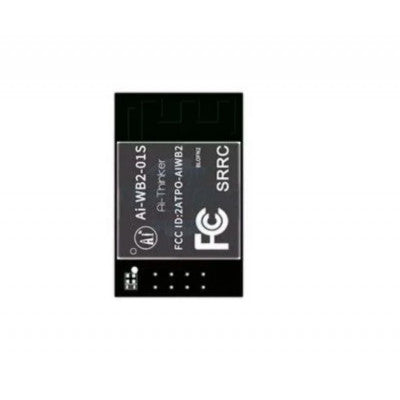

Ai Thinker Ai-WB2-01S WiFi + BLE Module
A versatile Wi-Fi & BLE module for IoT applications
- Model: Ai-WB2-01S
- Package: DIP-8
- Size: 14.5x24.5x11.2(±0.2)mm
- Antenna on-board: PCB antenna
- Frequency: 2400 ~ 2483.5MHz
- Operating temperature: -40°C ~ 85°C
- Storage temperature: -40°C ~ 125°C, < 90%R
- Power supply voltage: 2.7V ~ 3.6V
- Power supply current: ?500mA
- Interface: UART/GPIO/ADC/PWM
- IO: 3
- UART rate: Default value: 115200 bps
- Security: WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
- Flash: Default 2MByte Support expansion
Top Features:
- DIP-8 package
- Supports IEEE 802.11 B/g/n protocol
- Wi-Fi security supports various protocols
- Bluetooth 5.0, Bluetooth Mesh
Ai-WB2-01S is a Wi-Fi & BLE module developed by Shenzhen Ai-Thinker Technology Co., Ltd. This module is equipped with BL602 chip as the core processor and supports Wi-Fi 802.11b/g/n protocol and BLE 5.0 protocol. The BL602 chip has a built-in 32-bit RISC CPU with low power consumption and 276KB RAM. It can be widely used in the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes, and other fields.
The module supports a range of features including secure startup with ECC-256 signatures, real-time AES decryption, AES encryption engines, SHA-1/224/256, True Random Number Generator (TRNG), Public Key Accelerator (PKA), and more. It also integrates Wi-Fi MAC/BB/RF/PA/LNA/BT and supports multiple sleep modes with a deep sleep current of 12?A. The Ai-WB2-01S module offers a universal AT instruction for quick start and supports secondary development with Windows and Linux development environments.
