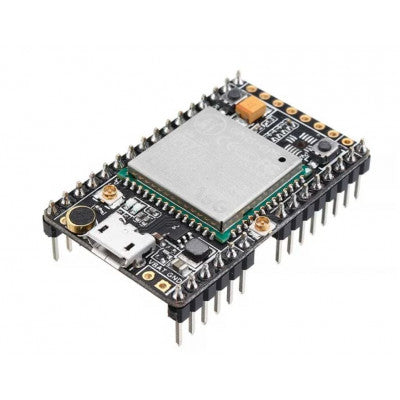

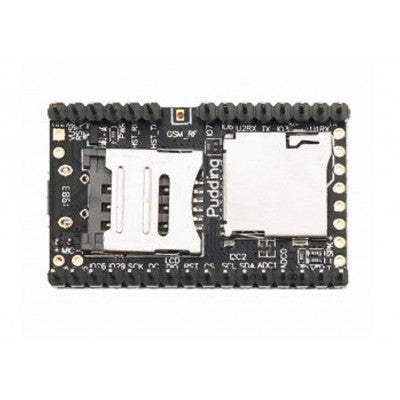

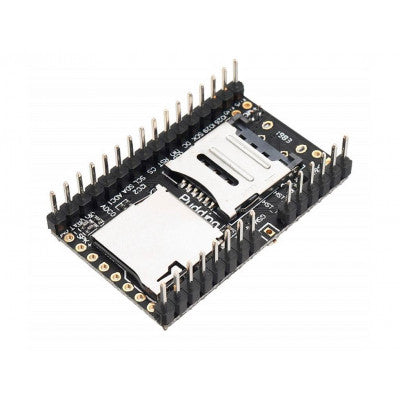

GPRS GSM Breakout Board with AI-Thinker A9G
Newest GSM GPRS Quad-Band Module for Voice, Text, SMS, and Data
- Model: A9G
- Frequency: 850/900/1800/1900MHz
- GPRS Multi-Slot: Class 12
- GPRS Mobile Station: Class B
- Compatible with GSM: Class 4 (2W@850/900MHz) Class 1 (1W@1800/1900MHz)
- Power Supply: 3.5~4.2V typical value 4.0V
- Current: 1.14mA@DRX=5 1.03mA@DRX=9
- AT Command: 3GPP TS 27.007, 27.005
- Working Temperature Range (°C): -40 to 85
Features:
- 5v USB or Lipo battery (3.3V-4.2V) support
- GSM / GPRS four bands support
- Digital and analog audio support
- Voice calls and SMS messages support
This GPRS GSM breakout board is based on the AI-Thinker A9G, the newest GSM GPRS Quad-Band module. It allows you to add voice, text, SMS, and data to your project with high-cost performance compared to SIM800 and SIM900. The A9G is an ideal solution for M2M applications, suitable for automotive, industrial and PDA, personal tracking, electricity environment detection, wireless POS, smart metering, and other M2M applications, providing comprehensive GSM / GPRS text messaging, voice, and data transmission services.
The embedded network service protocol stack and support for standard GSM07.07.07.05 AT commands make it versatile for various applications.
Package Includes:

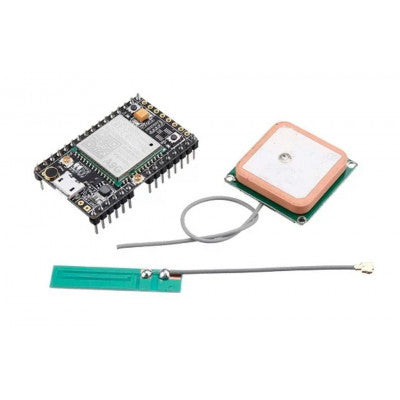

- 1 x Ai Thinker A9G GSM/GPRS+GPS/BDS Development Board
Images are for illustration only; actual product may vary.
