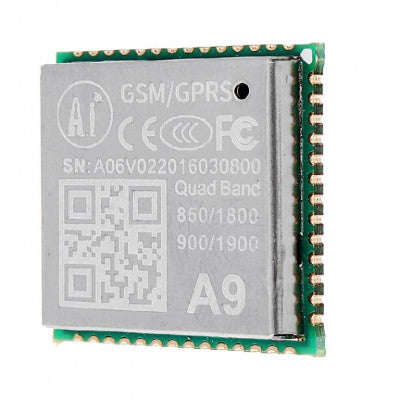

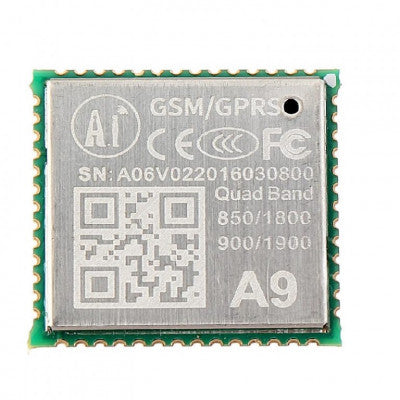

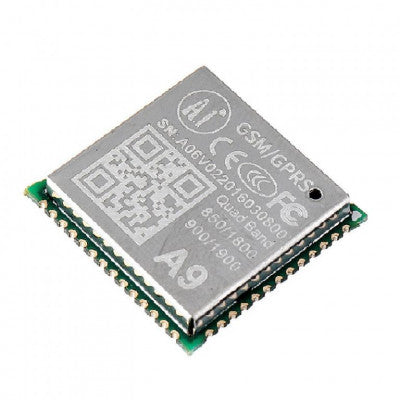

Ai Thinker A9 GPRS Series Module
A versatile module for a wide range of IoT applications
- Model Name: A9
- Package: SMD54
- Frequency: 850/900/1800/1900MHz
- GPRS Multi-slot: Class 12
- GPRS Mobile Station: Class B
- Power Supply: 3.5~4.2V (typical value 4.0V)
- Current: 1.14mA@DRX=5, 1.03mA@DRX=9
- AT Command: 3GPP TS 27.007, 27.005
Features:
- Quad-band GSM/GPRS module
- Voice calls and SMS support
- 85.6 Kbps data rate
- Firmware upgrade via serial port
The Ai Thinker A9 GPRS Series Module is a complete quad-band GSM/GPRS module designed for a wide range of IoT applications. It supports GSM/GPRS frequencies of 800/900/1800/1900 MHz, voice calls, SMS messages, and firmware upgrades via the serial port. With low power consumption and multiple serial ports, it is ideal for various IoT projects.
The module operates at a working temperature of -30 to 80 degrees Celsius and a working voltage range of 3.5V to 4.2V. It supports PBCCH, 3 serial ports, and has a sensitivity GPIO level of 2.8 volts. The compact design and cost-effectiveness make it suitable for diverse customer needs.
The package includes 1 x Ai Thinker A9 GPRS Series Module.
Additional Information:
- Length (mm): 19.2
- Width (mm): 18
- Height (mm): 2.5
- Weight (gm): 3
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
