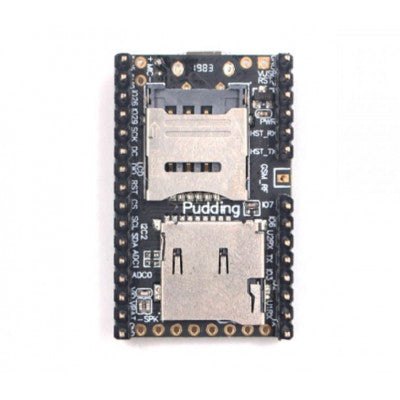

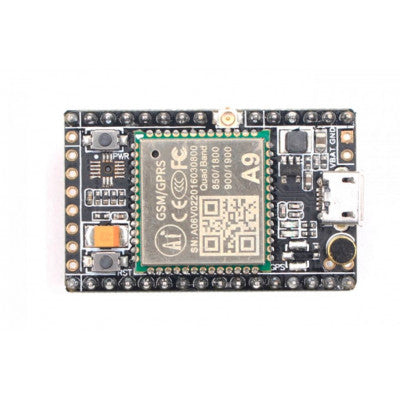

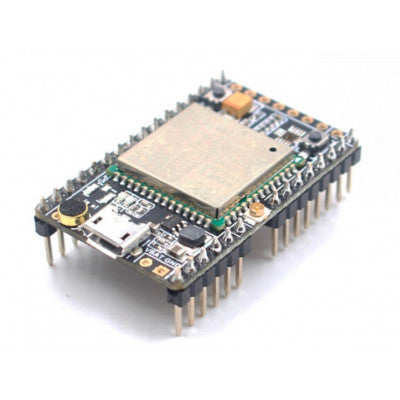

GPRS GSM Breakout Board with AI-Thinker A9
Newest GSM GPRS Quad-Band Module for Voice, Text, SMS, and Data
- Model: A9
- Frequency: 850/900/1800/1900MHz
- GPRS Multi-Slot: Class 12
- GPRS Mobile Station: Class B
- Compatible with GSM: Class 4 (2W@850/900MHz) Class 1 (1W@1800/1900MHz)
- Power Supply: 3.5~4.2V typical value 4.0V
- Current: 1.14mA@DRX=5 1.03mA@DRX=9
- AT Command: 3GPP TS 27.007, 27.005
- Working Temperature Range (°C): -20 to 70
Top Features:
- 5v USB or Lipo battery support
- GSM / GPRS four bands support
- Digital and analog audio support
- Voice calls and SMS messages support
This GPRS GSM breakout board is based on the AI-Thinker A9, the newest GSM GPRS Quad-Band module. It allows you to add voice, text, SMS, and data capabilities to your project. The A9 offers high-cost performance compared to SIM800 and SIM900, making it an ideal solution for M2M applications in automotive, industrial, personal tracking, and more.
With support for digital audio, analog audio, voice calls, SMS messages, and embedded network service protocol stack, the A9 provides comprehensive GSM / GPRS services. It also supports standard GSM07.07.07.05 AT commands for easy integration into your project.

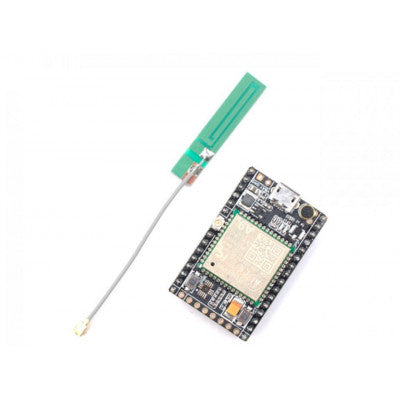

The A9 GPRS + GSM Development Board package includes 1 x Ai Thinker A9 GPRS + GSM Development Board.
* Images are for illustration only; actual product may vary.
