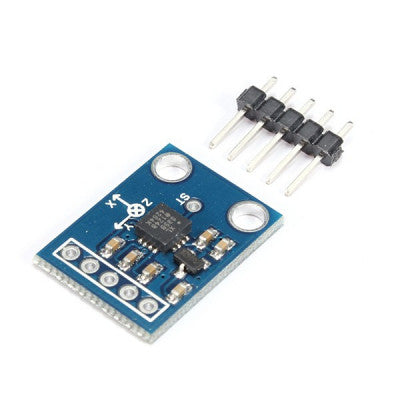

ADXL335 Breakout Board
A 3-axis accelerometer module for motion and tilt sensing
- Spec name: ADXL335 Breakout Board
- Spec name: 3-axis sensing
- Spec name: Small, low profile package
- Spec name: 4 mm × 4 mm × 1.45 mm LFCSP
- Spec name: Low power: 350 ?A (typical)
- Spec name: Single-supply operation: 1.8 V to 3.6 V
- Spec name: 10,000 g shock survival
- Spec name: Excellent temperature stability
- Spec name: BW adjustment with a single capacitor per axis
- Spec name: RoHS/WEEE lead-free compliant
Top Features:
- 3-axis sensing
- Low power consumption
- Small form factor
- Wide operating voltage range
The ADXL335 Breakout Board is based on the 3-axis ADXL335 IC from Analog Devices. This accelerometer module requires no external devices and operates on a 5V power supply. It can be directly interfaced to the ADC of a microcontroller without any external components. The module is ideal for sensing motion or tilt in 3 axes.
This module is the latest in a long line of Analog Sensors and is known for its extremely low noise and power consumption, drawing only 320uA. With a full sensing range of +/-3g, it is suitable for various applications including cost-sensitive, low-power motion- and tilt-sensing applications, mobile devices, gaming systems, and DIY projects requiring orientation information.
The ADXL335 Breakout Board is designed for easy integration and accurate motion sensing in a compact form factor, making it a versatile choice for a range of projects.
