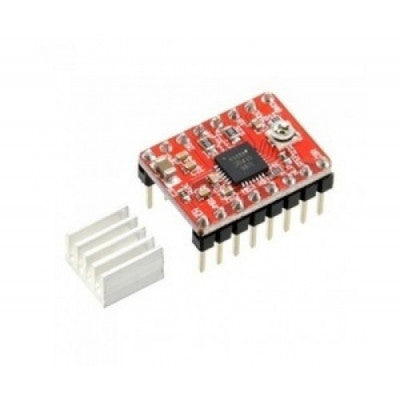

A4988 Module
A cost-effective breakout board for Allegro's A4988 Stepper Motor Driver.
- Minimum operating voltage: 8V
- Maximum operating voltage: 35V
- Continuous current per phase: 1 Amp
- Maximum current per phase: 2 Amp
- Minimum logic voltage: 3V
- Maximum logic voltage: 5.5V
- Microstep resolutions: Full, 1/2, 1/4, 1/8, and 1/16
- Reverse voltage protection?: No
Features:
- Simple step and direction control interface
- Adjustable current control for higher step rates
- Intelligent chopping control for optimal current decay mode
- Over-temperature and under-voltage protection
A4988 Module is a small breakout board offering adjustable current limiting, over temperature, and over current protection. It supports five different stepping resolutions and operates in a wide voltage range of 8V to 35V, delivering up to 1 Amp per phase.
The A4988 is a complete micro-stepping motor driver with easy operation via a built-in translator. It can operate bipolar stepper motors in various step modes and has an output capacity of up to 35V and ±2A. The translator simplifies operation, making it ideal for applications where a complex microprocessor is not available.
The module's features include a fixed off-time current regulator, capable of operating in Slow or Mixed decay modes. The A4988's chopping control automatically selects the current decay mode for optimal performance. It also includes short-to-ground and shorted-load protection for added safety.
Images are for illustration only; actual product may vary.
